Common Raven

Description

Animatronic replica of a common raven (corax corax)

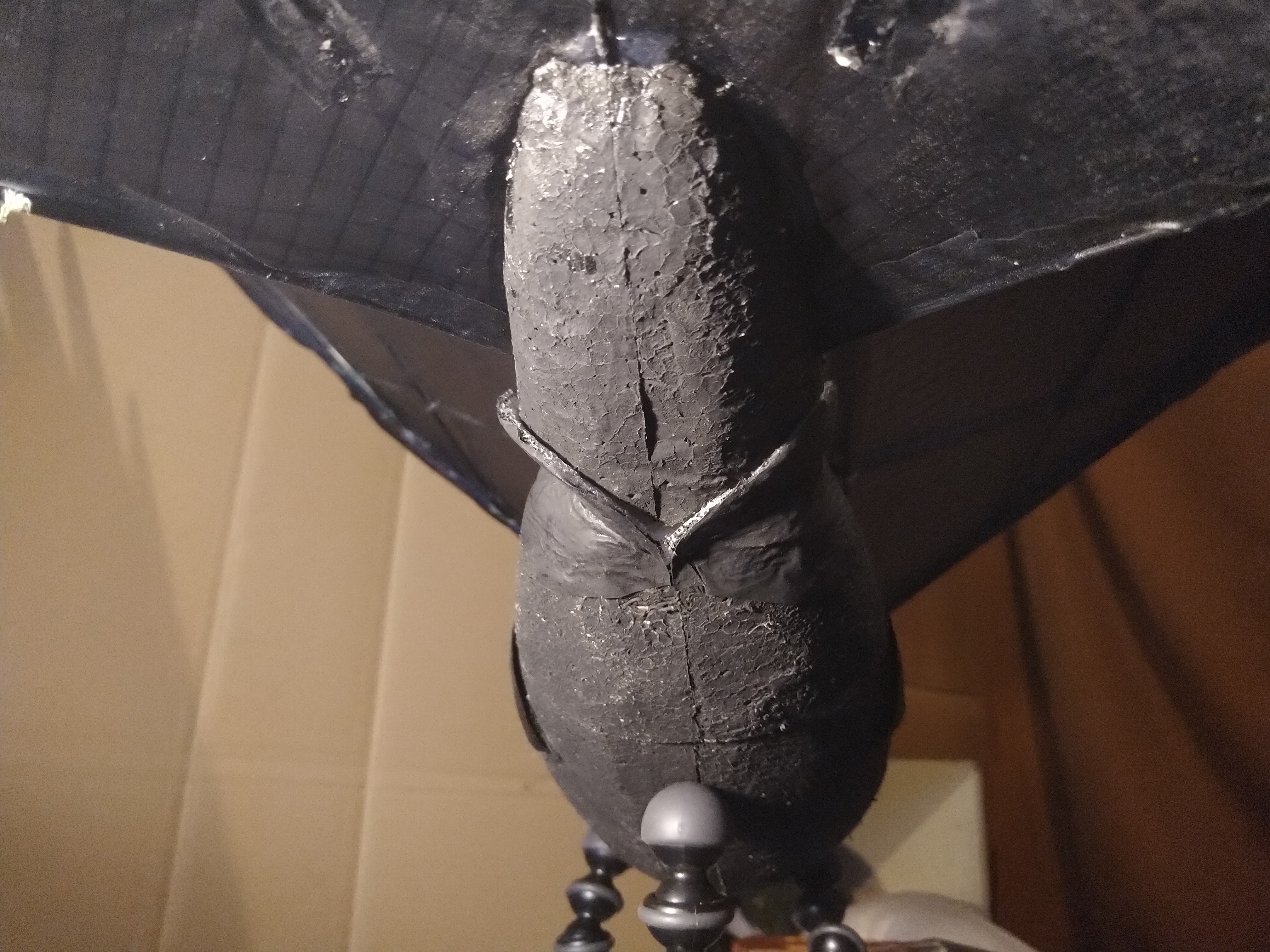

5IMG_20200520_073013

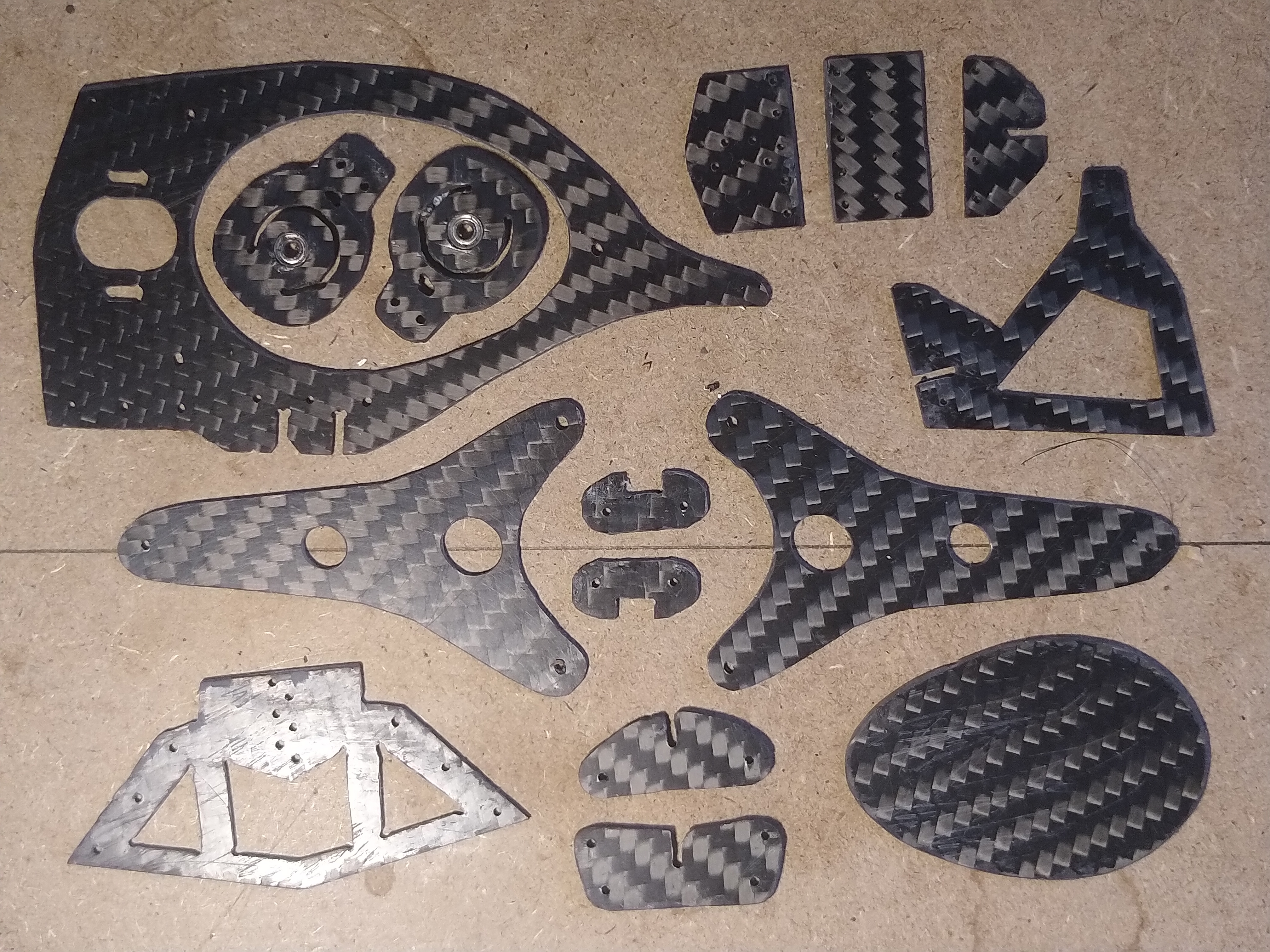

carbon parts

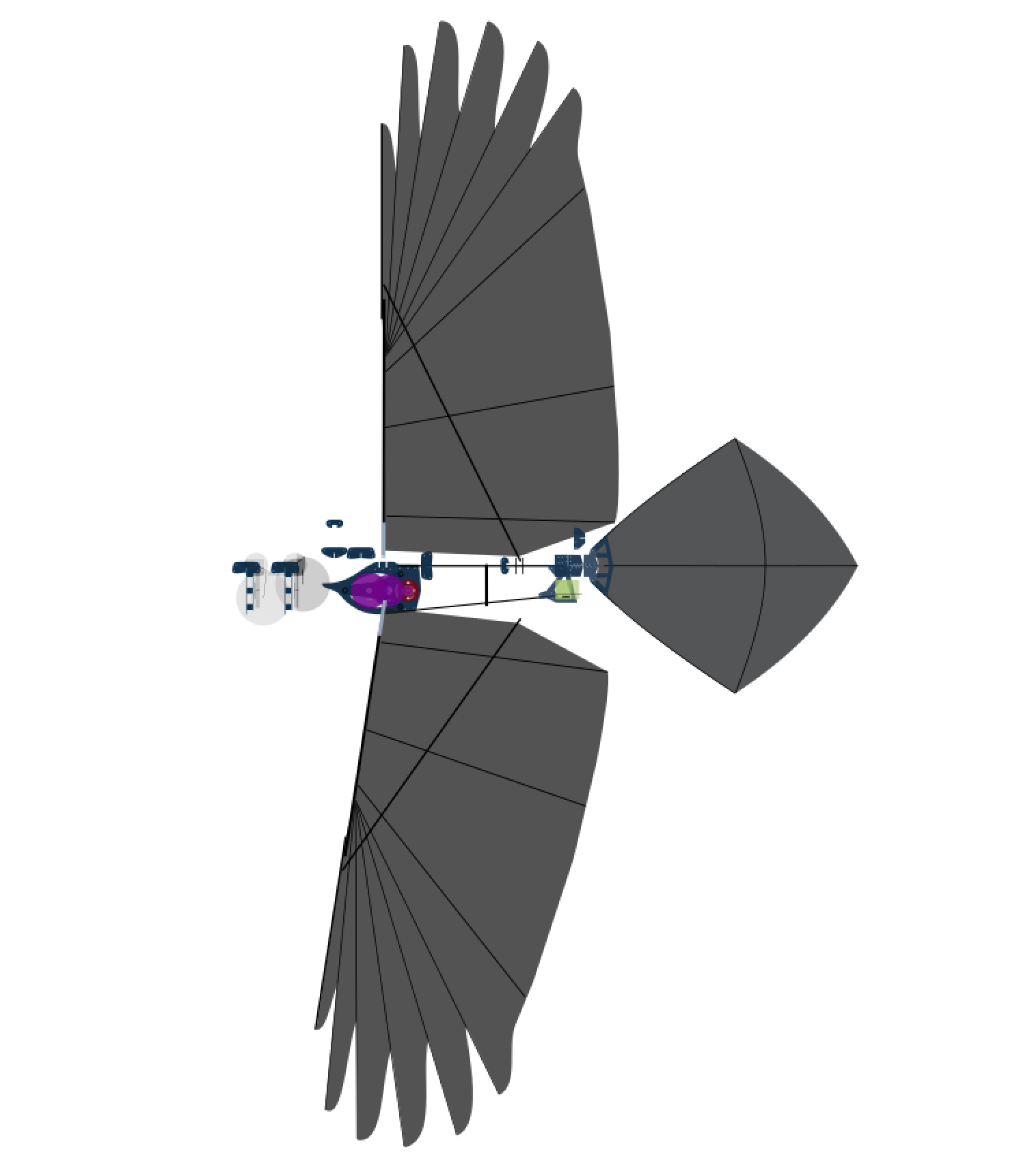

plan

Specification

Wingspan: 101cm
Length: 59cm
Weight: 180g
Motor: 20C Brushless Motor outrunner
ESC: 12AMP Simonk with BEC + extra 6Vbec for servos (extra bec can be removed if model flies with 2cell)
Gears: 69T48dp main gear 7T0.5MpinionWire,64t0.5Msuprgear 12t0.5M pinion
Battery: 240-350mah 2-3cell lipo
Control: Control: 2x D56MG HV servos
Receiver: Flysky X6B 2.4G 6CH
Stabilizer: arduino flight controller with gyro

Video

Enjoy some flights:

Tagged as #ornithopter, #raven, #corax corax, #glide mode, #arduino.

See also other animatronic works.
