Large Red Kite (milvus milvus)

Description

Animatronic replica of a large red kite (milvus milvus)

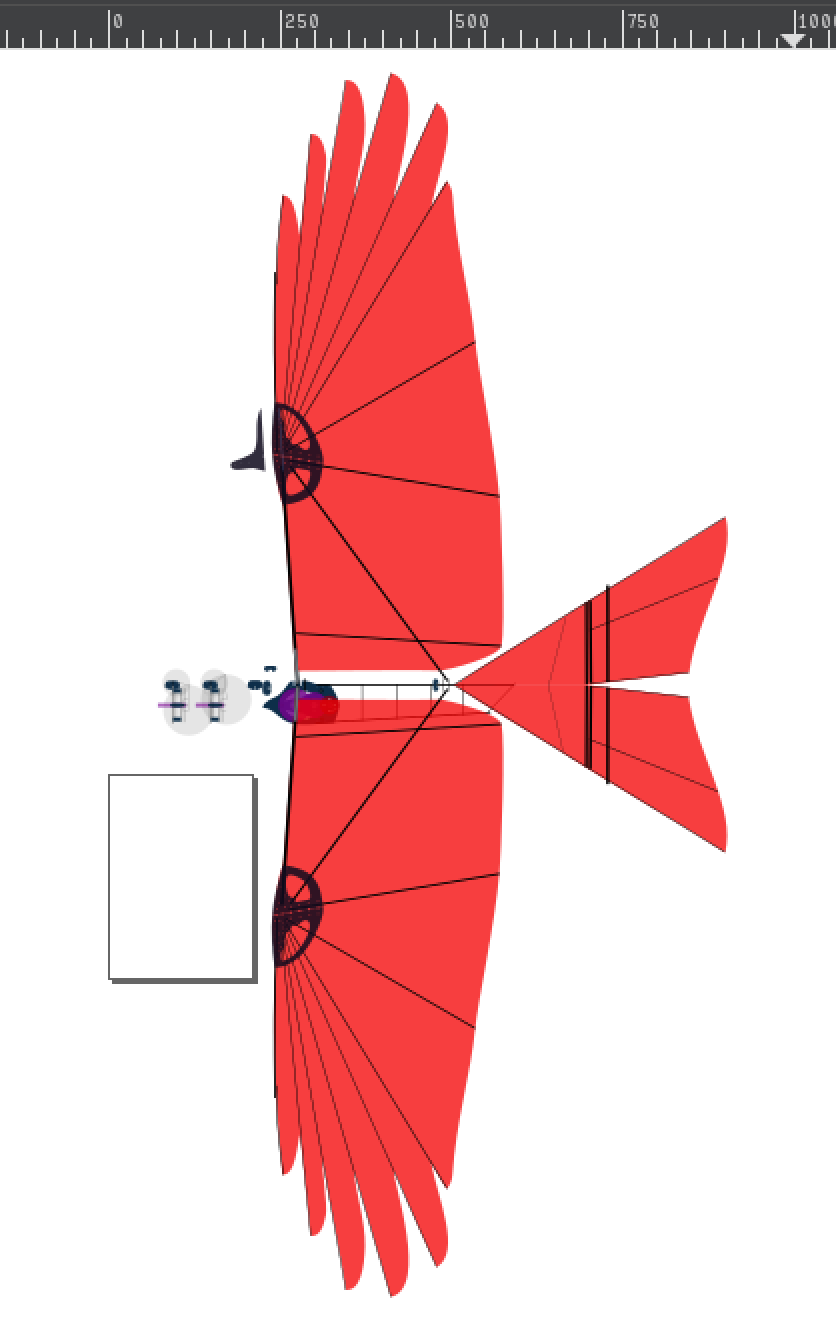

Plan full view

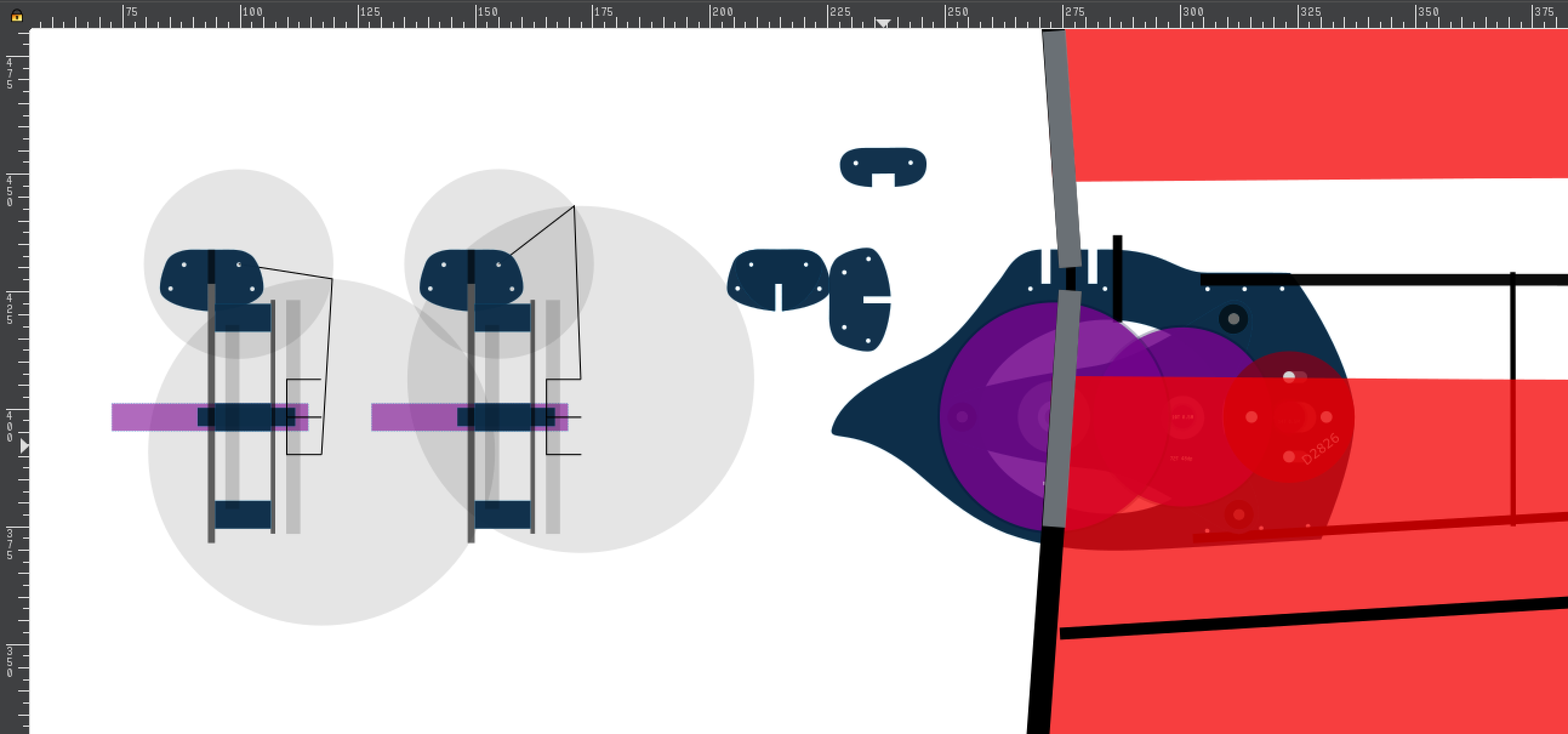

Plan closeup of gearbox and gearcrank mechanism

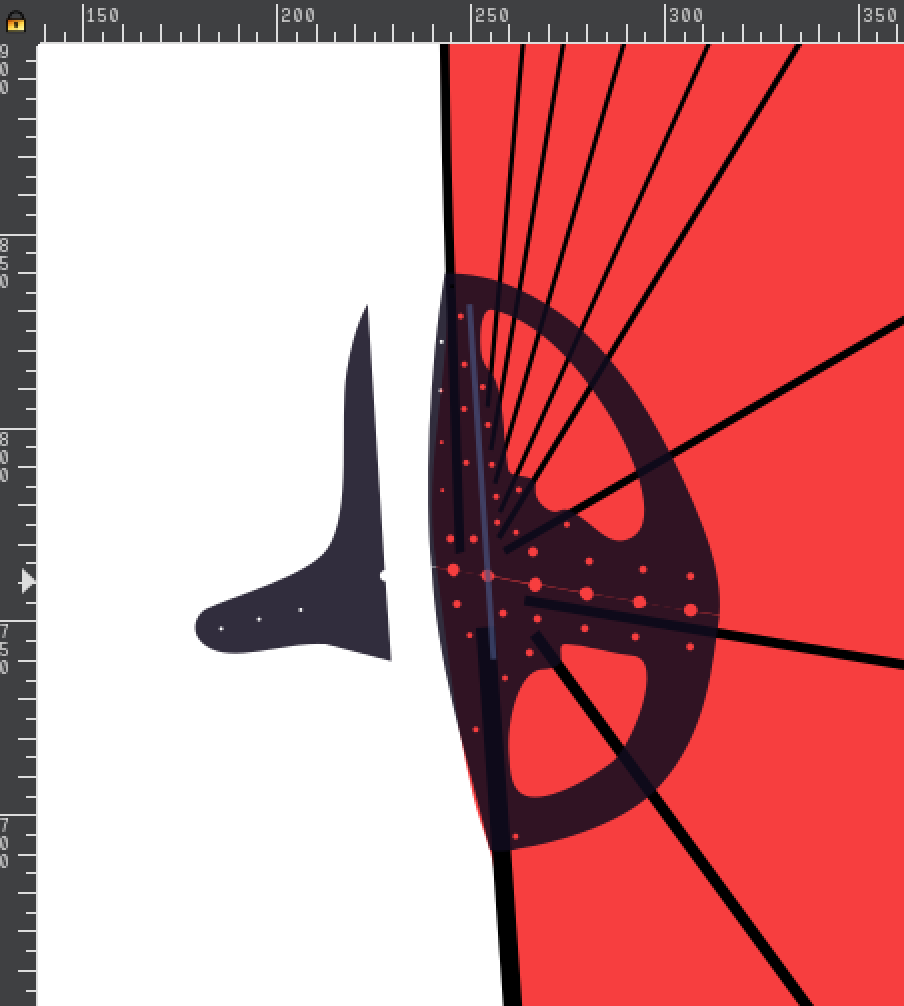

Plan closeup of wing joint

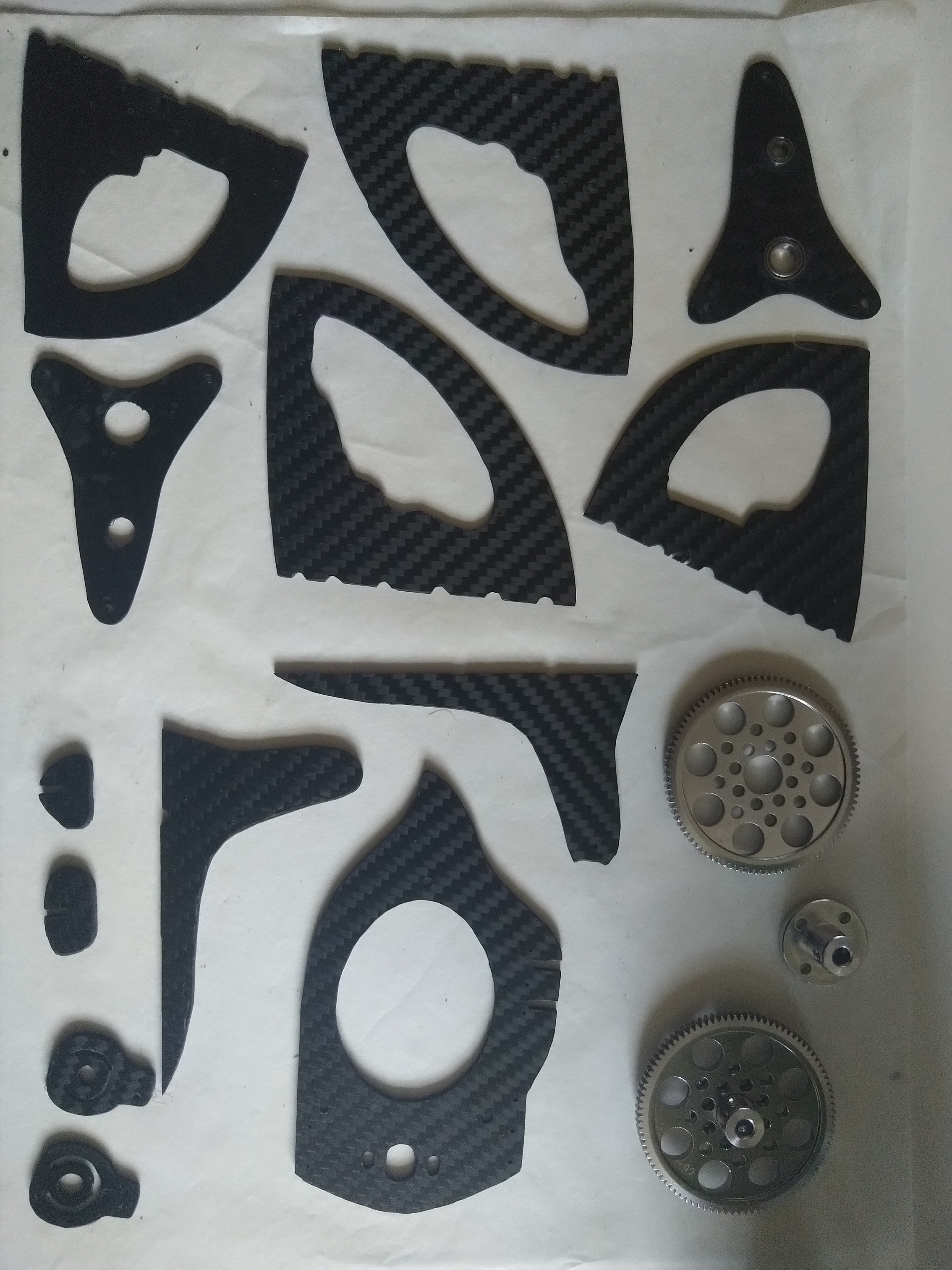

Aluminium Gears and Carbon parts

Specification

Wingspan: 180cm
Length: 77cm
Motor: D2826 Brushless Motor outrunner 1000kv
Gears: 21t0.5Mpinion- 72t0.5MspurGear,10t0.5Mpinionwwire-92t0.5MaluminiumMainGear
Battery: 450mah 3S lipo
Control: 2x DS-843MG Digital High Torque Micro Servo 4.8kg
Receiver: 4CH FLYSKY receiver

Video

Enjoy some flights:

Tagged as #ornithopter, #large, #red kite, #milvus milvus.

See also other animatronic works.
