Stormcutter

Description

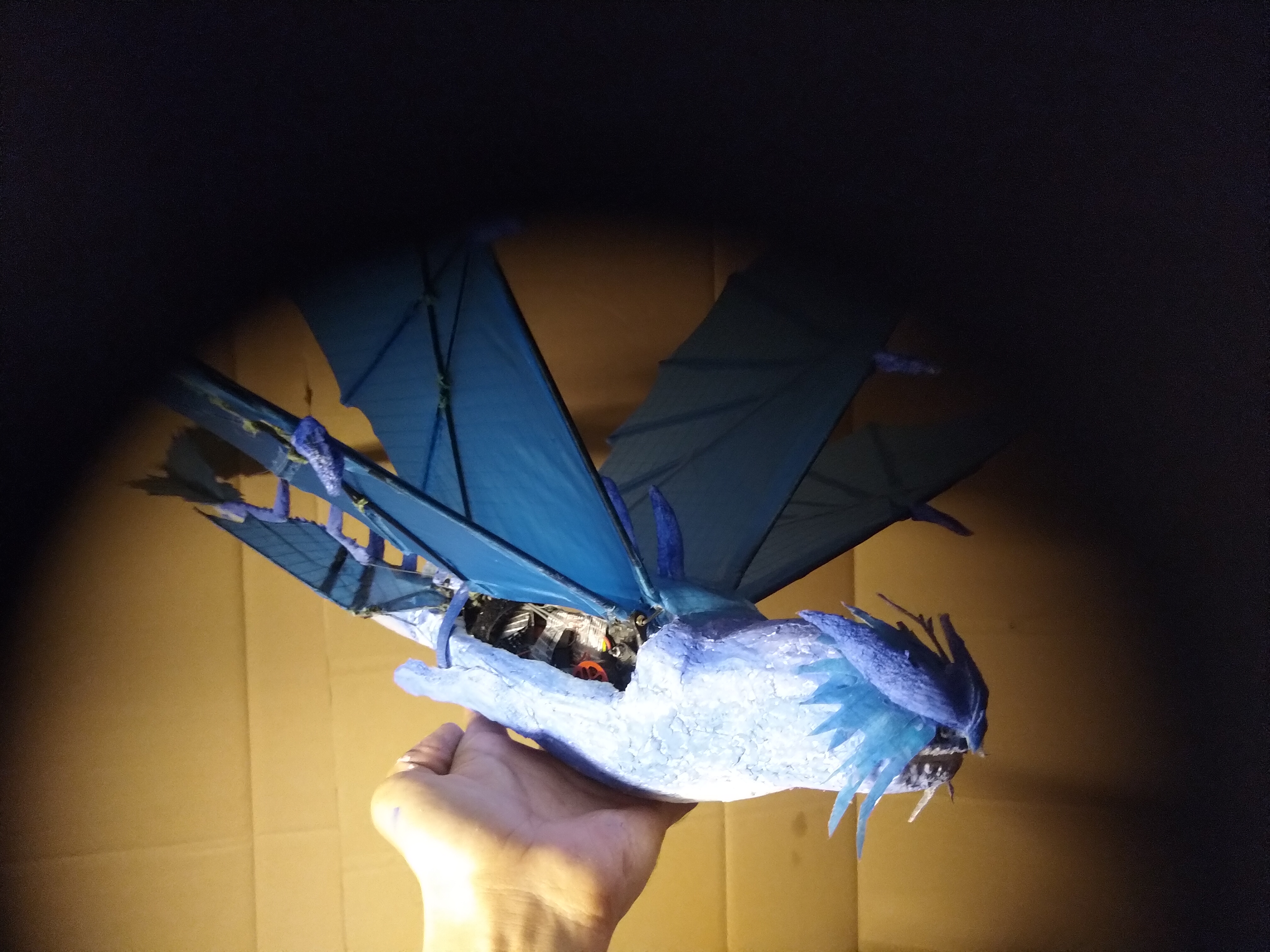

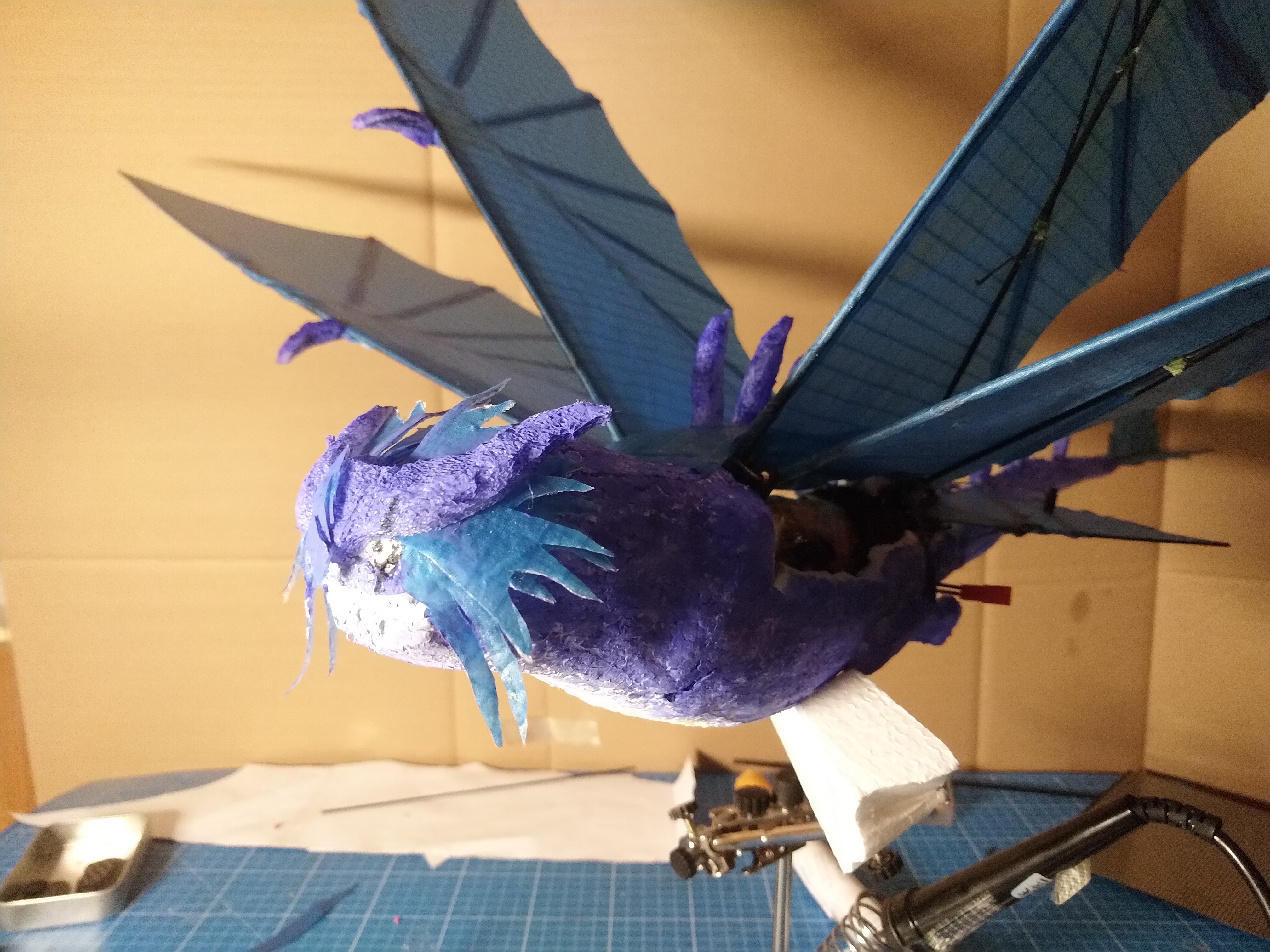

Animatronic replica of a stormcutter from the tv series how to train your dragon

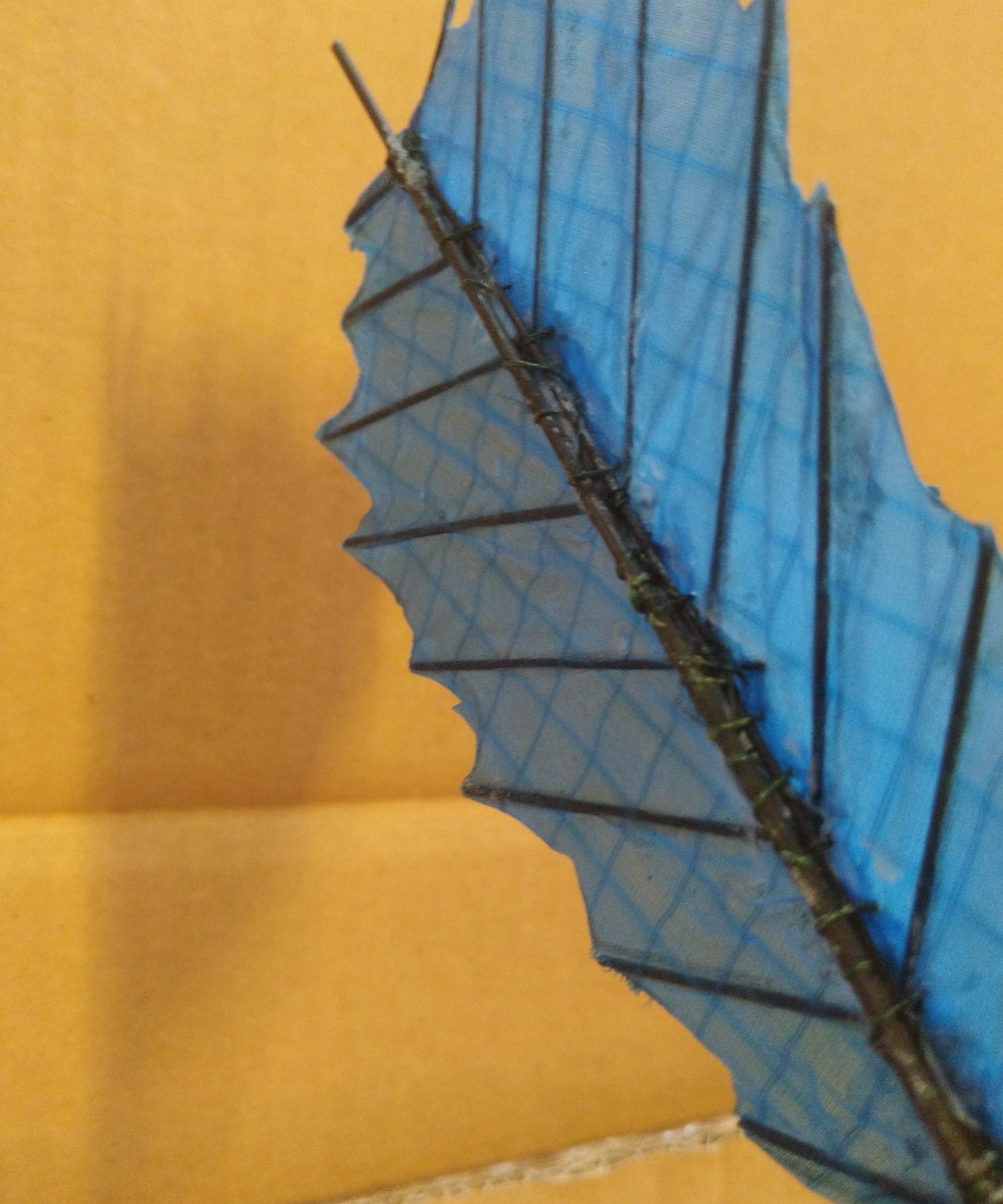

tail fin

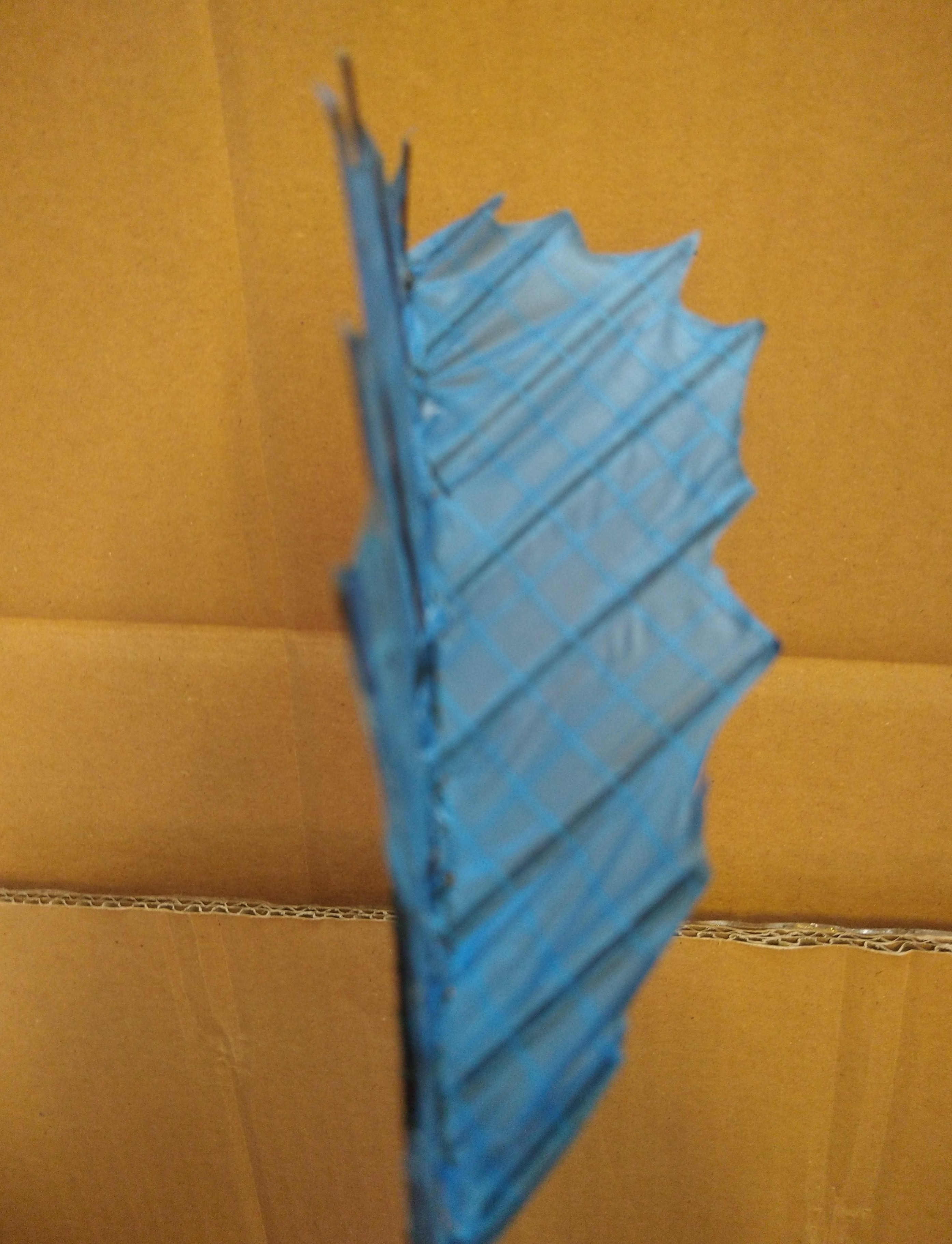

tail fin

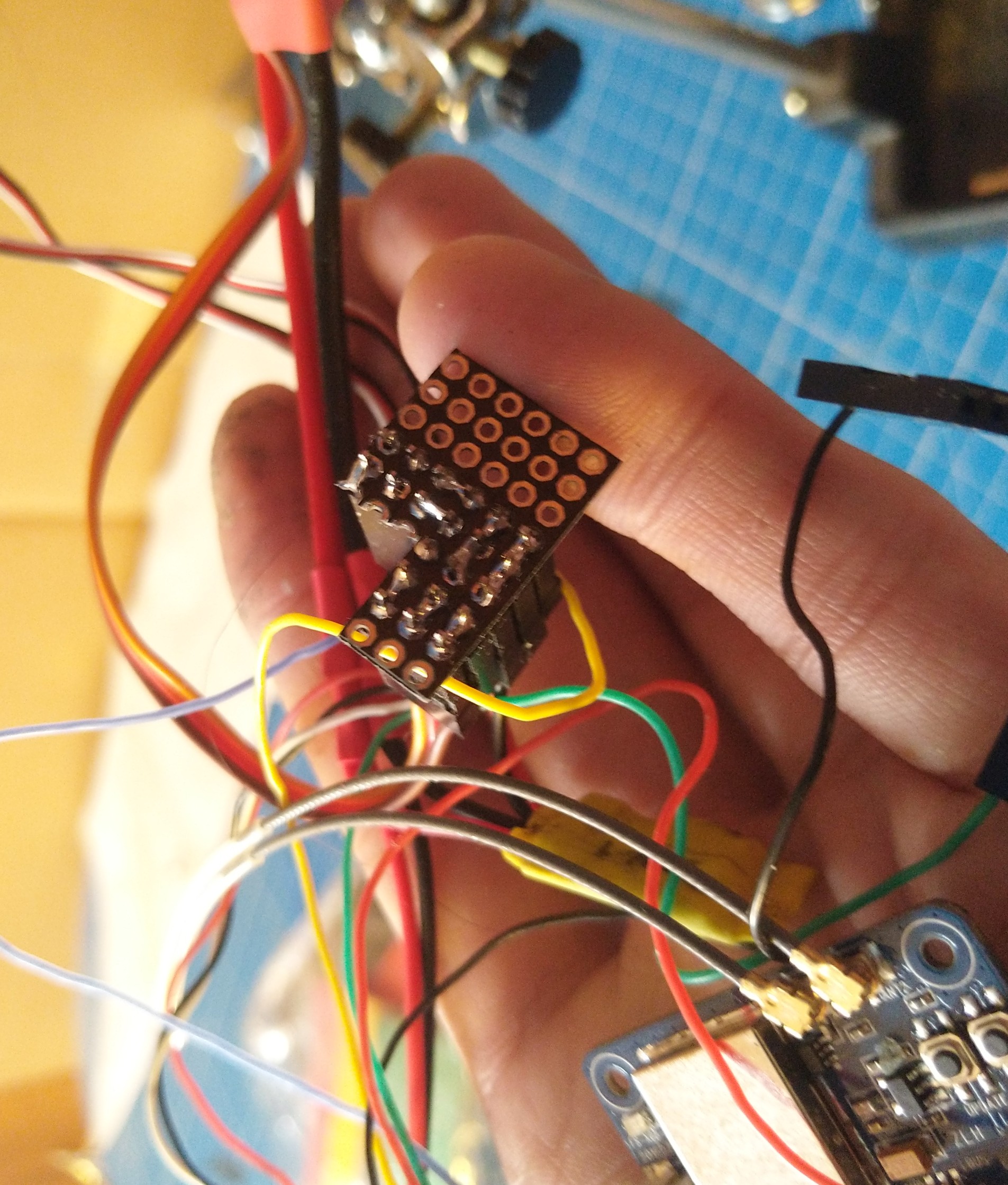

23IMG_20200411_184139

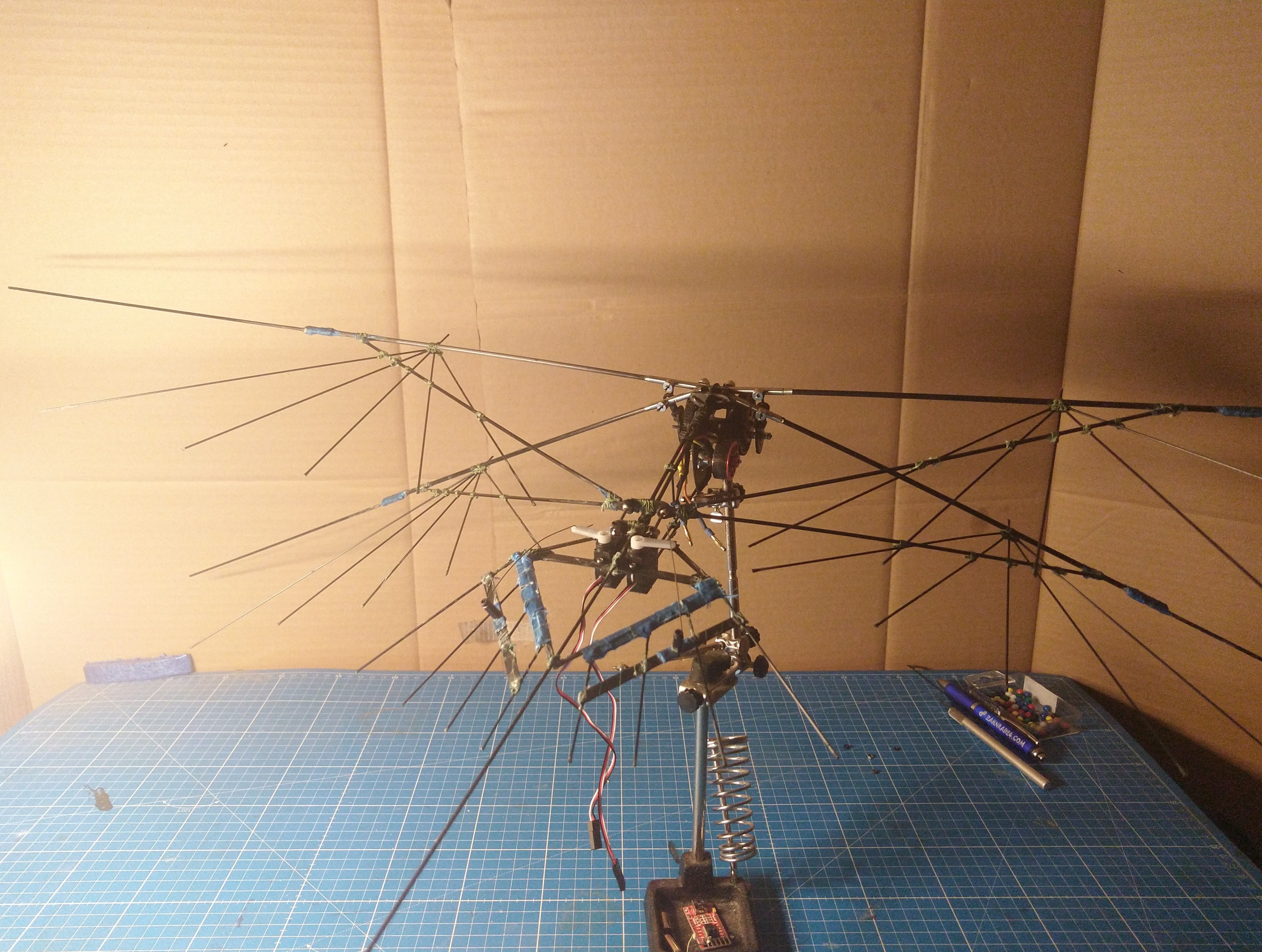

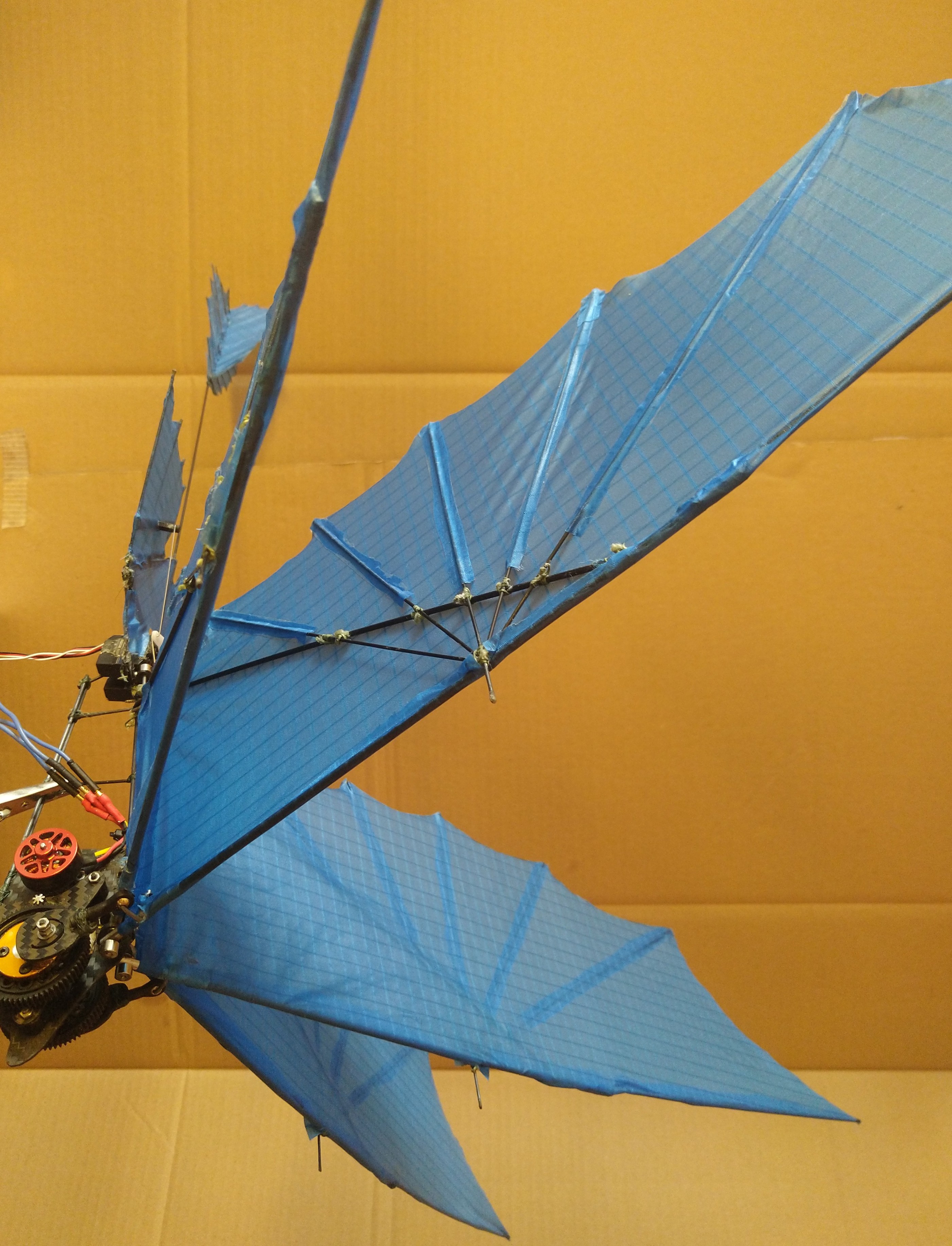

wings without membrane

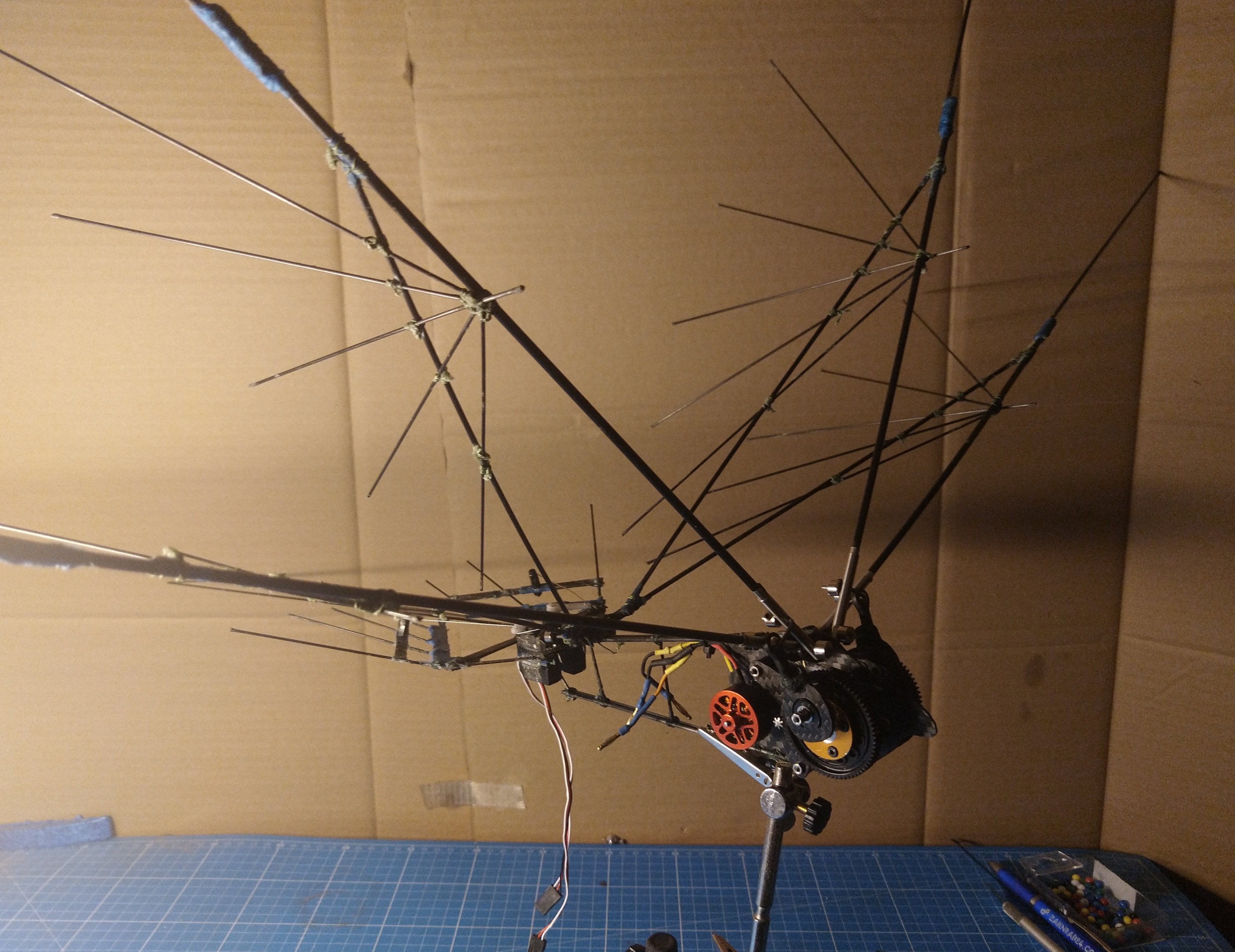

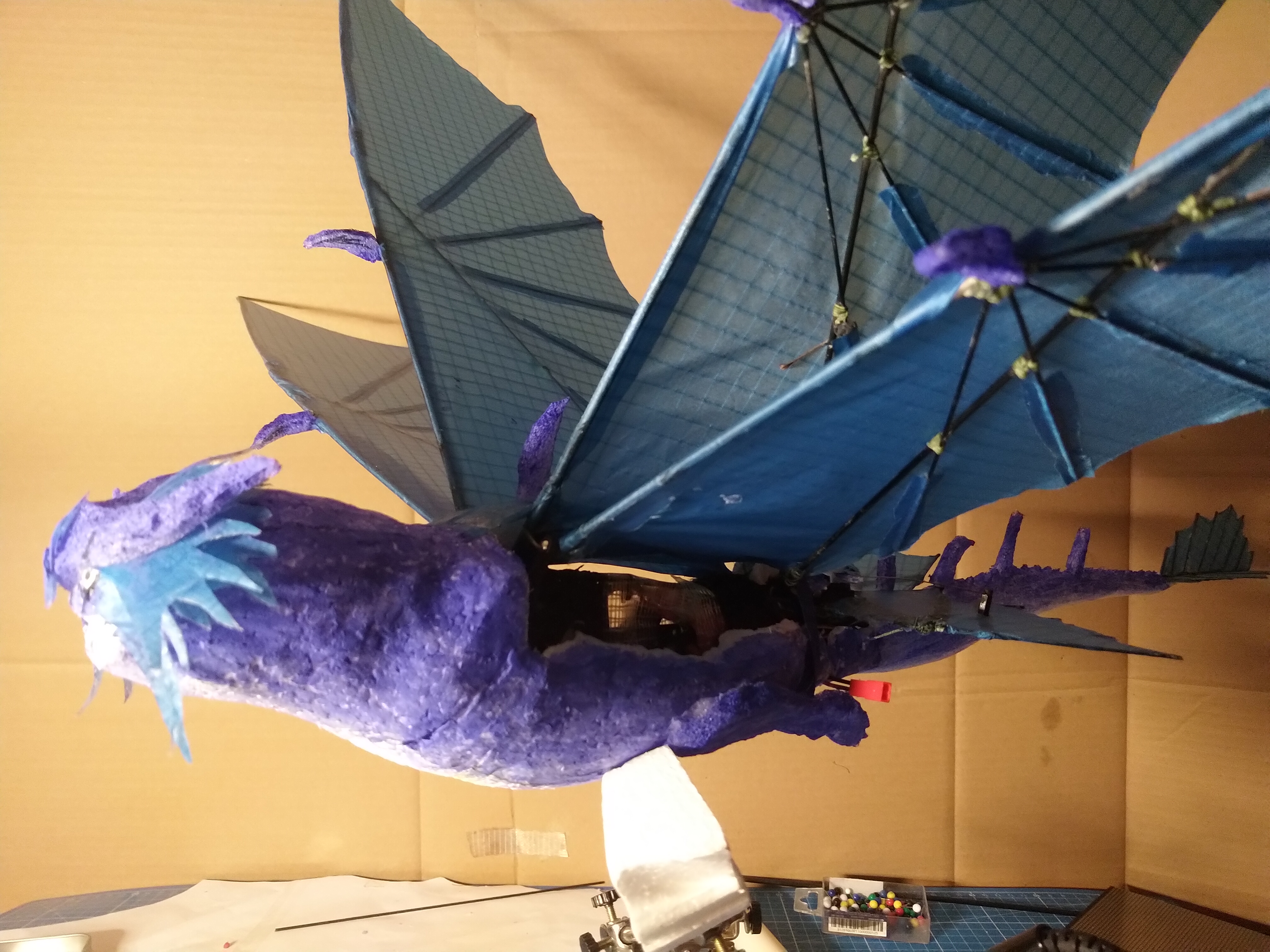

model with assemblied wings without membrane

model with assemblied wings without membrane

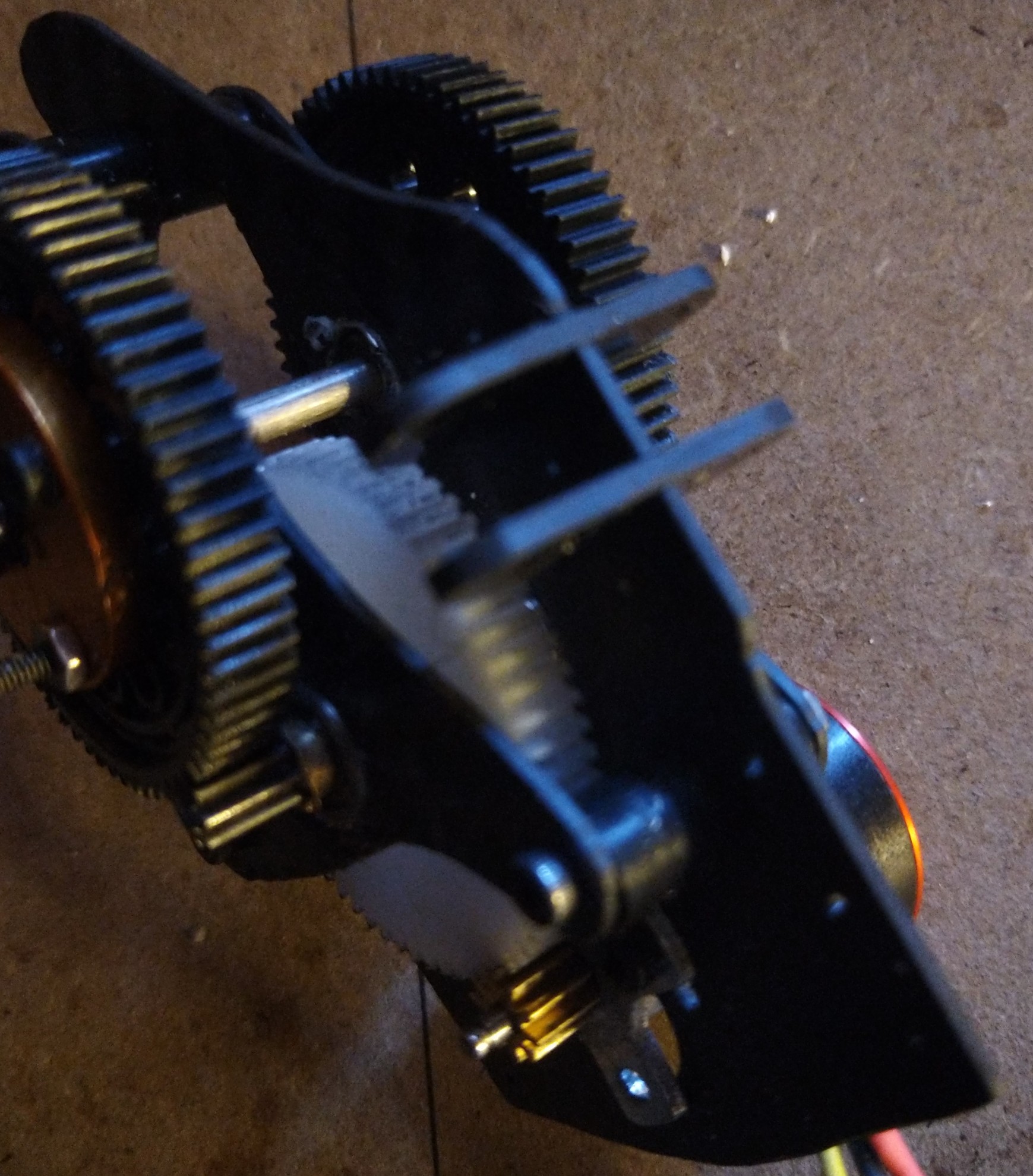

assemblied gearbox

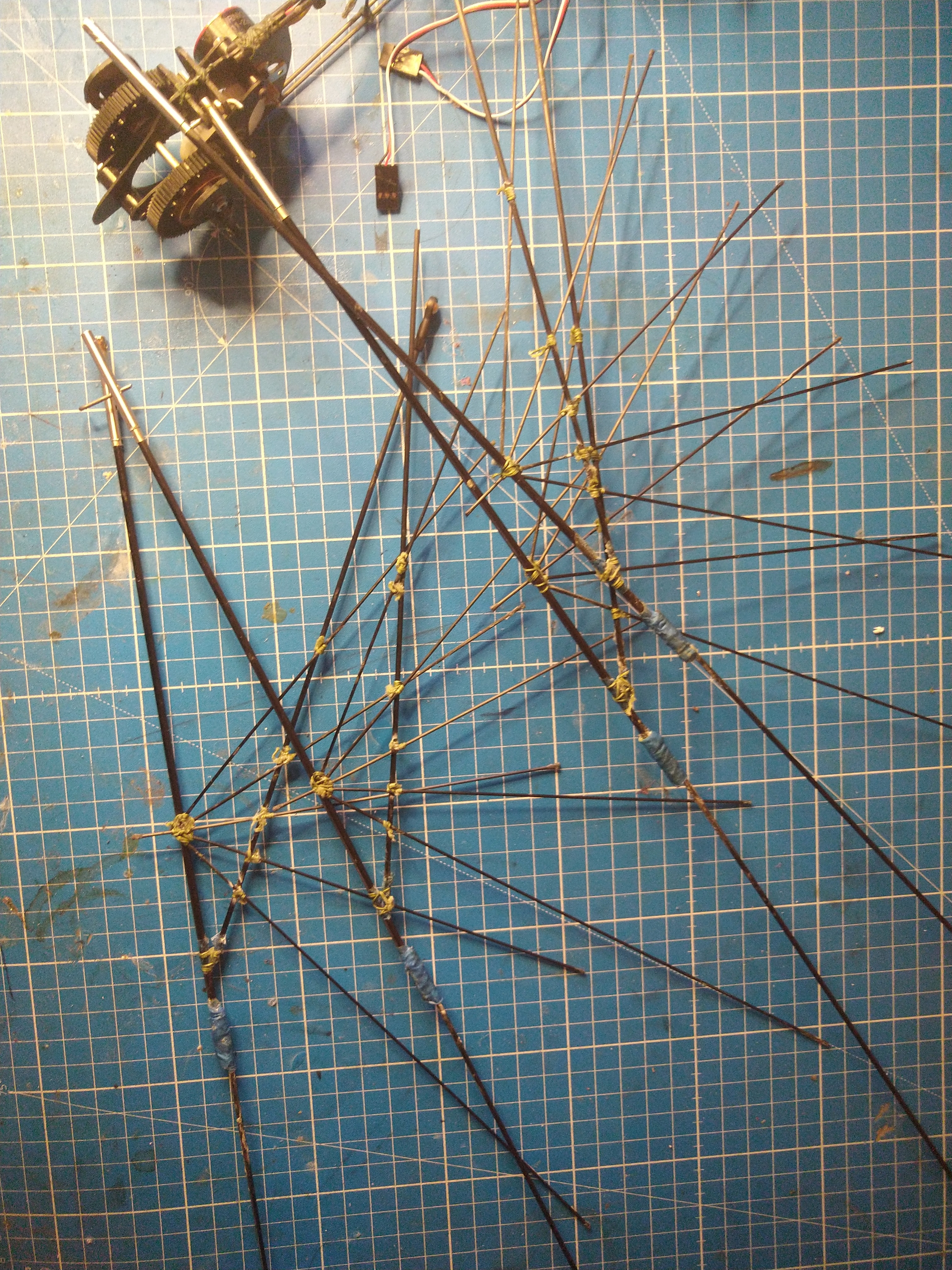

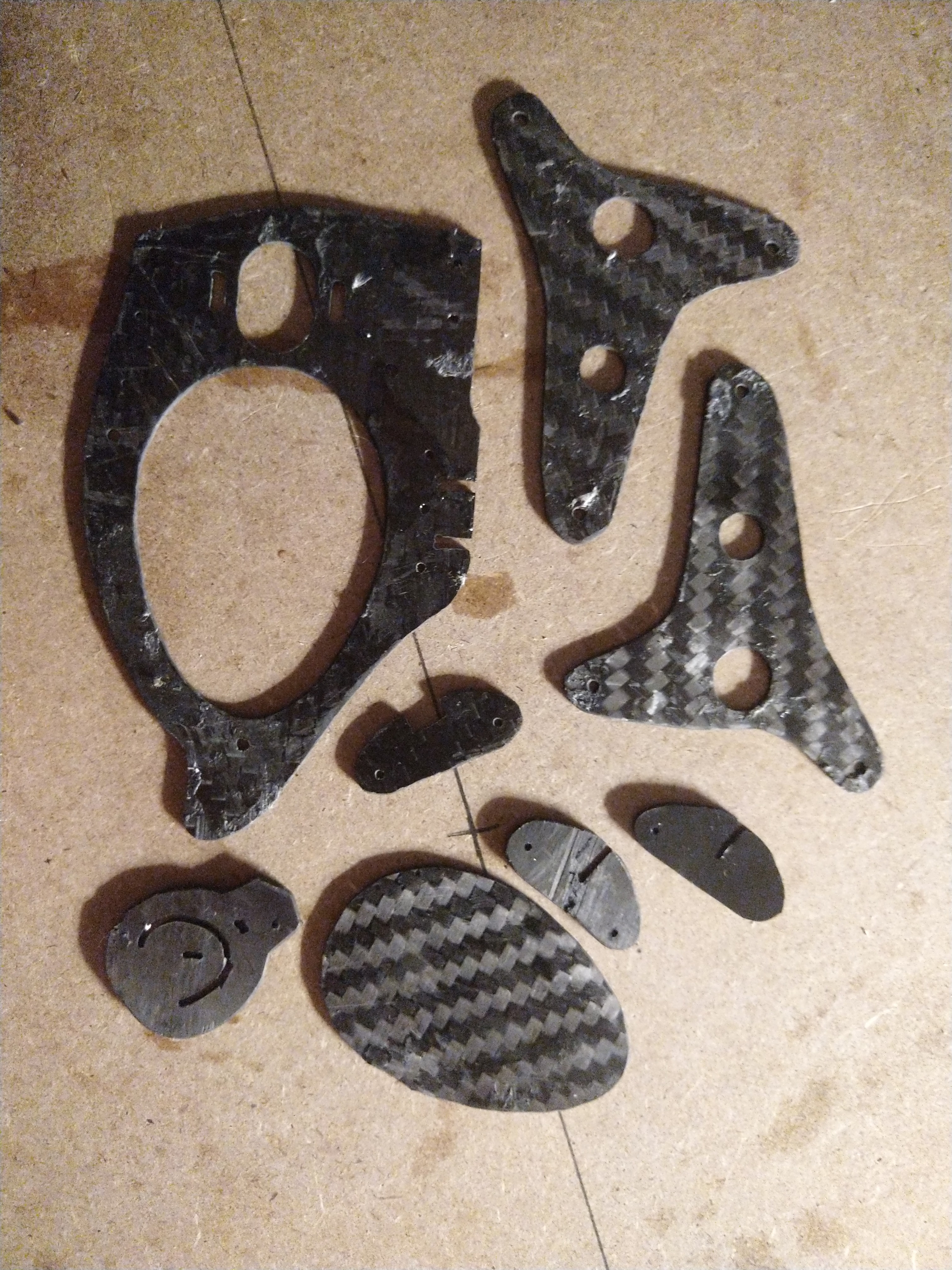

carbon parts

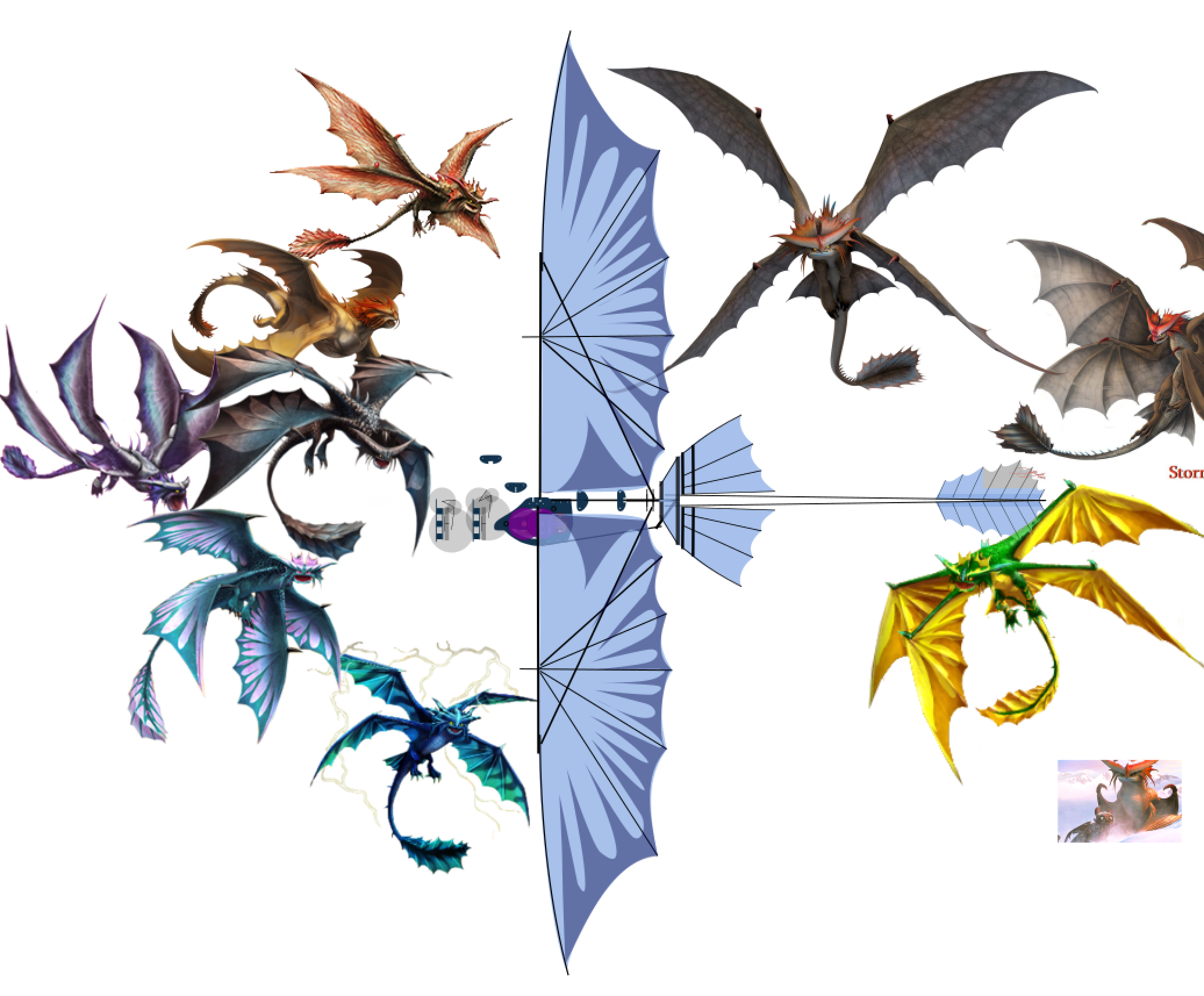

plan

Specification

Wingspan: 101cm
Length: 59cm
Weight: 180g
Motor: 2211 Brushless Motor outrunner 2300kv
ESC: 12AMP Simonk with BEC + extra 6Vbec for servos (extra bec can be removed if model flies with 2cell)
Gears: 69T48dp main gear 7T0.5MpinionWire,64t0.5Msuprgear 12t0.5M pinion
Battery: 240-350mah 2-3cell lipo
Control: Control: 2x D56MG HV servos
Receiver: Flysky X6B 2.4G 6CH
Stabilizer: HobbyEagle a3v2

Video

Enjoy some flights:

Tagged as #ornithopter, #stormcutter, #how to train your dragon.

See also other animatronic works.
