Stormcutter Titan

Description

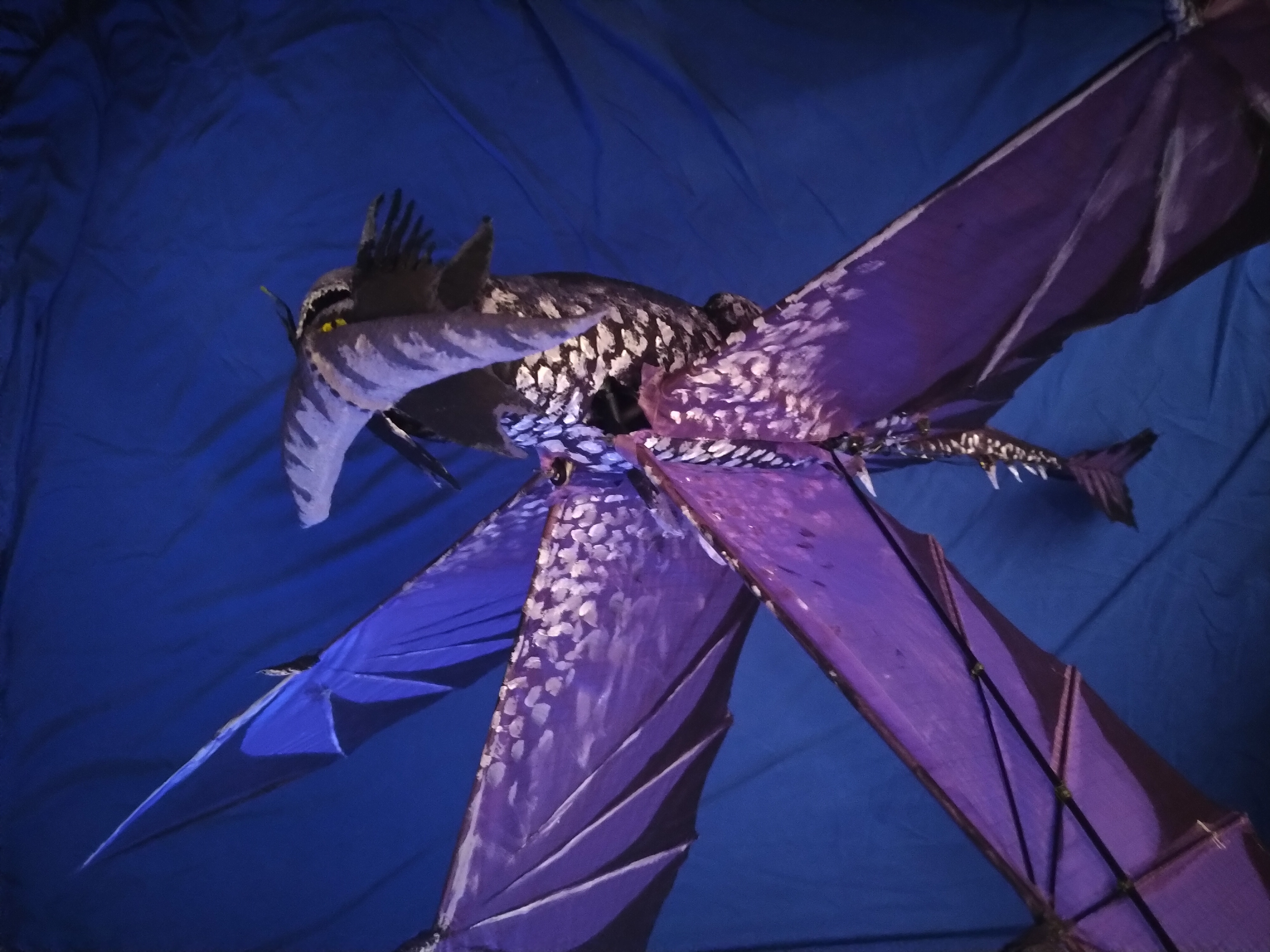

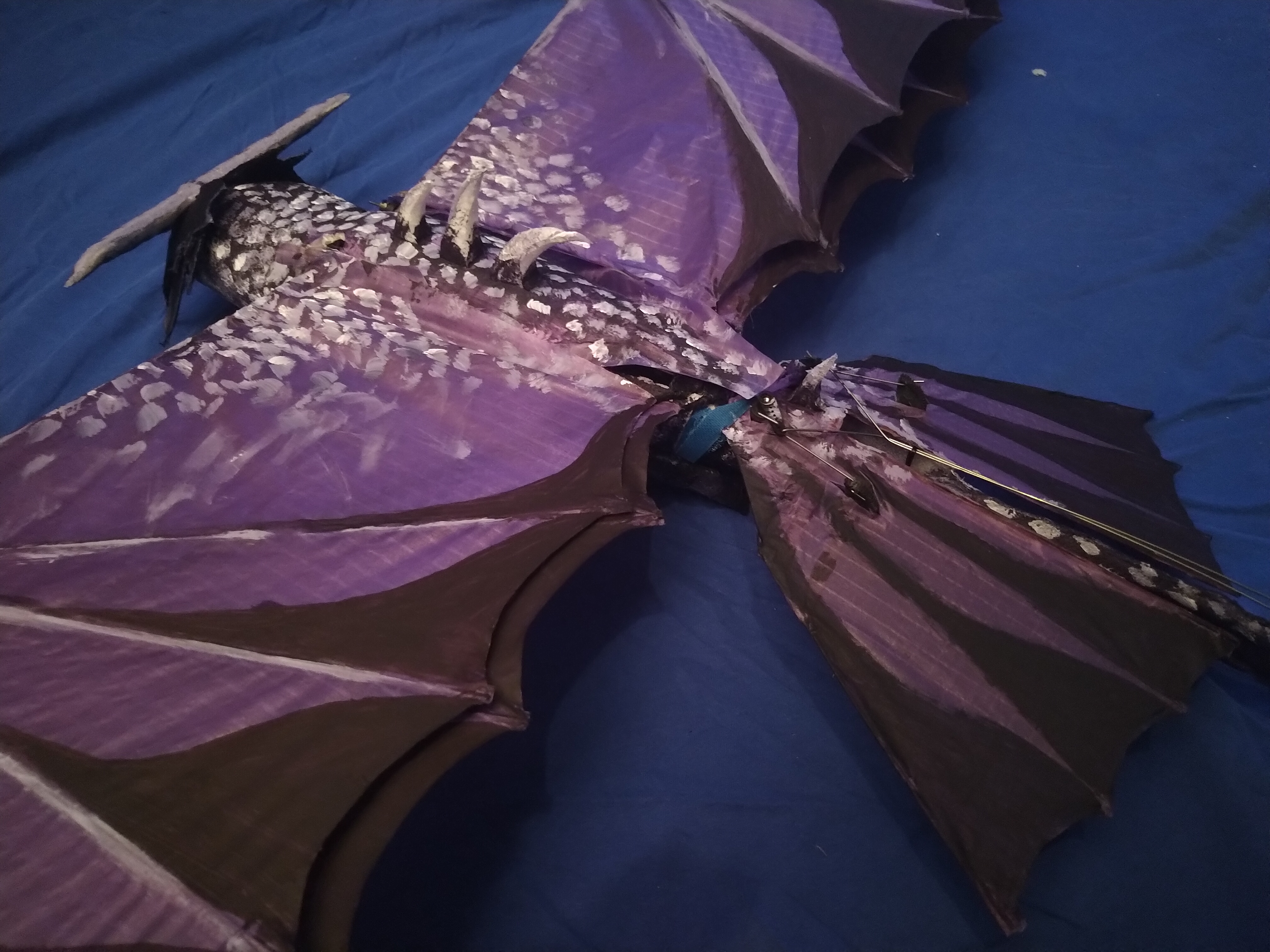

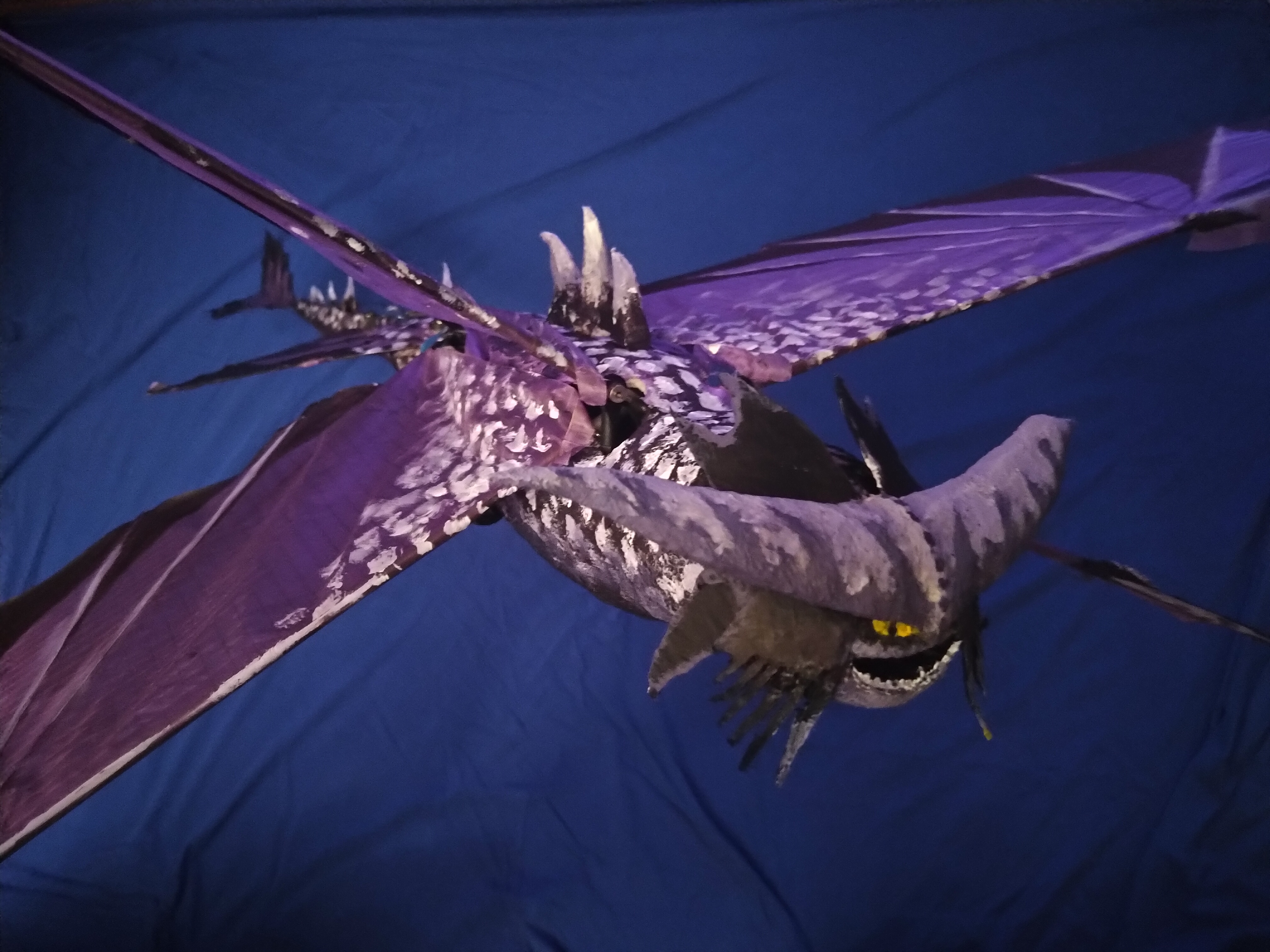

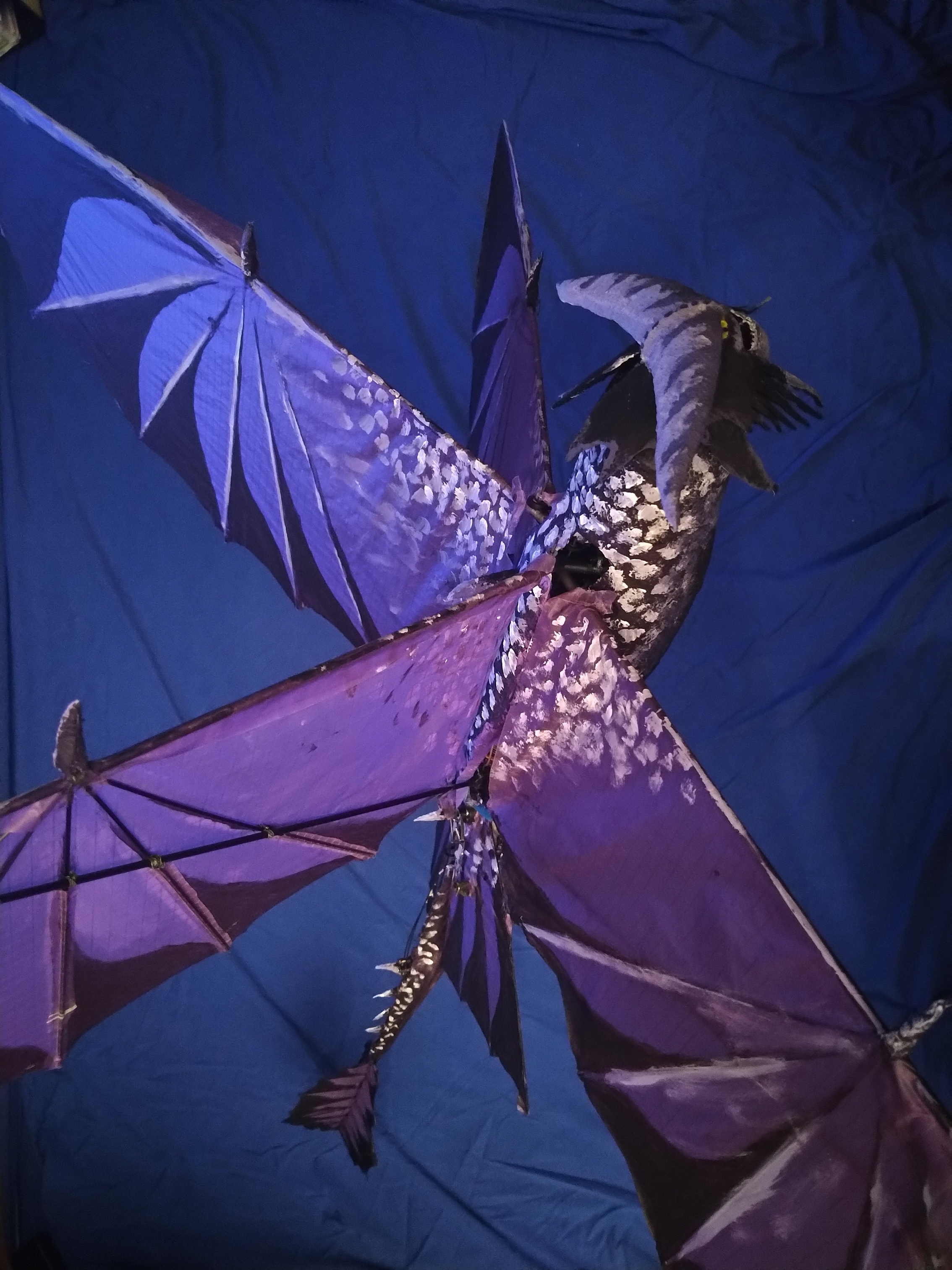

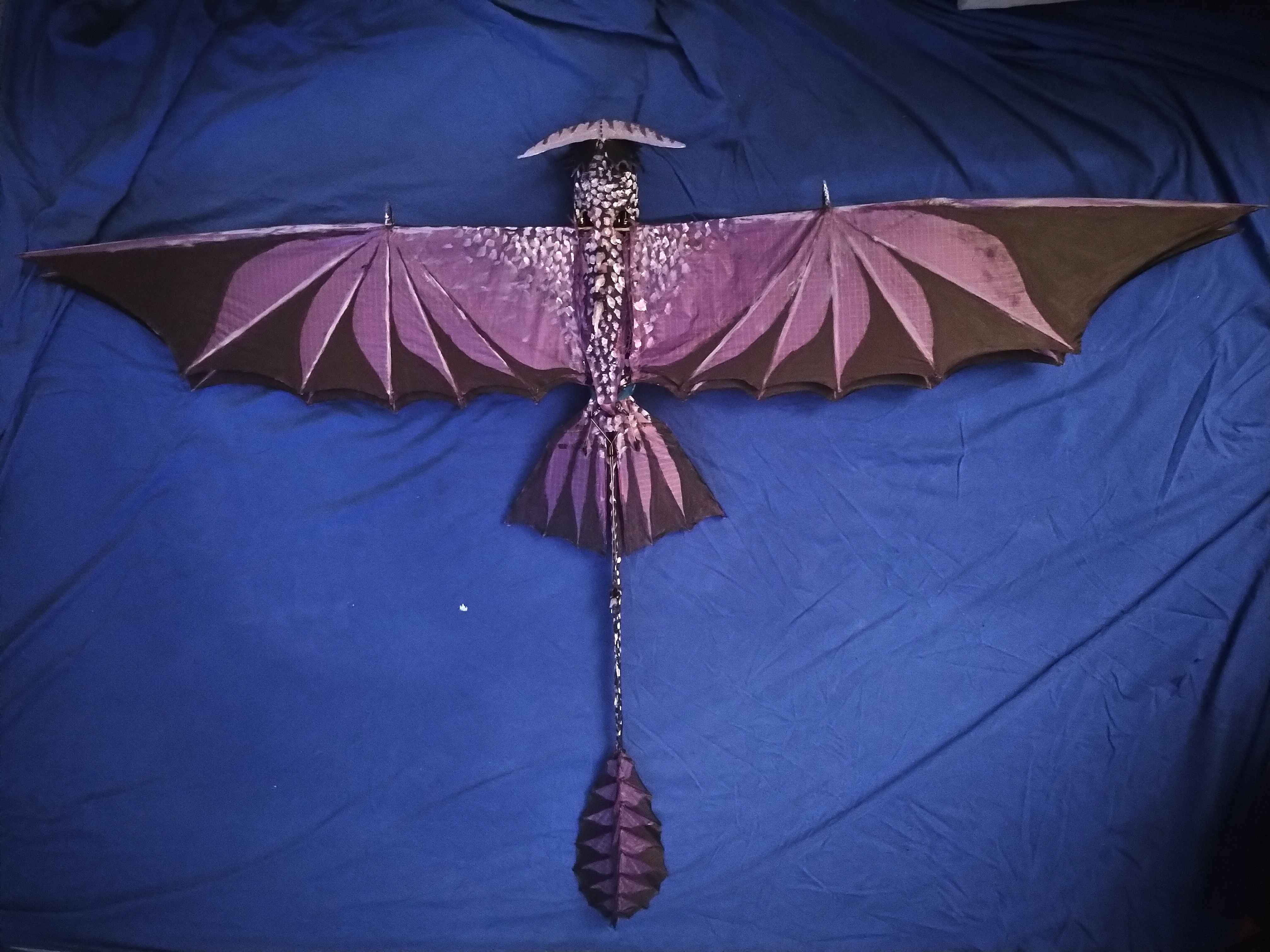

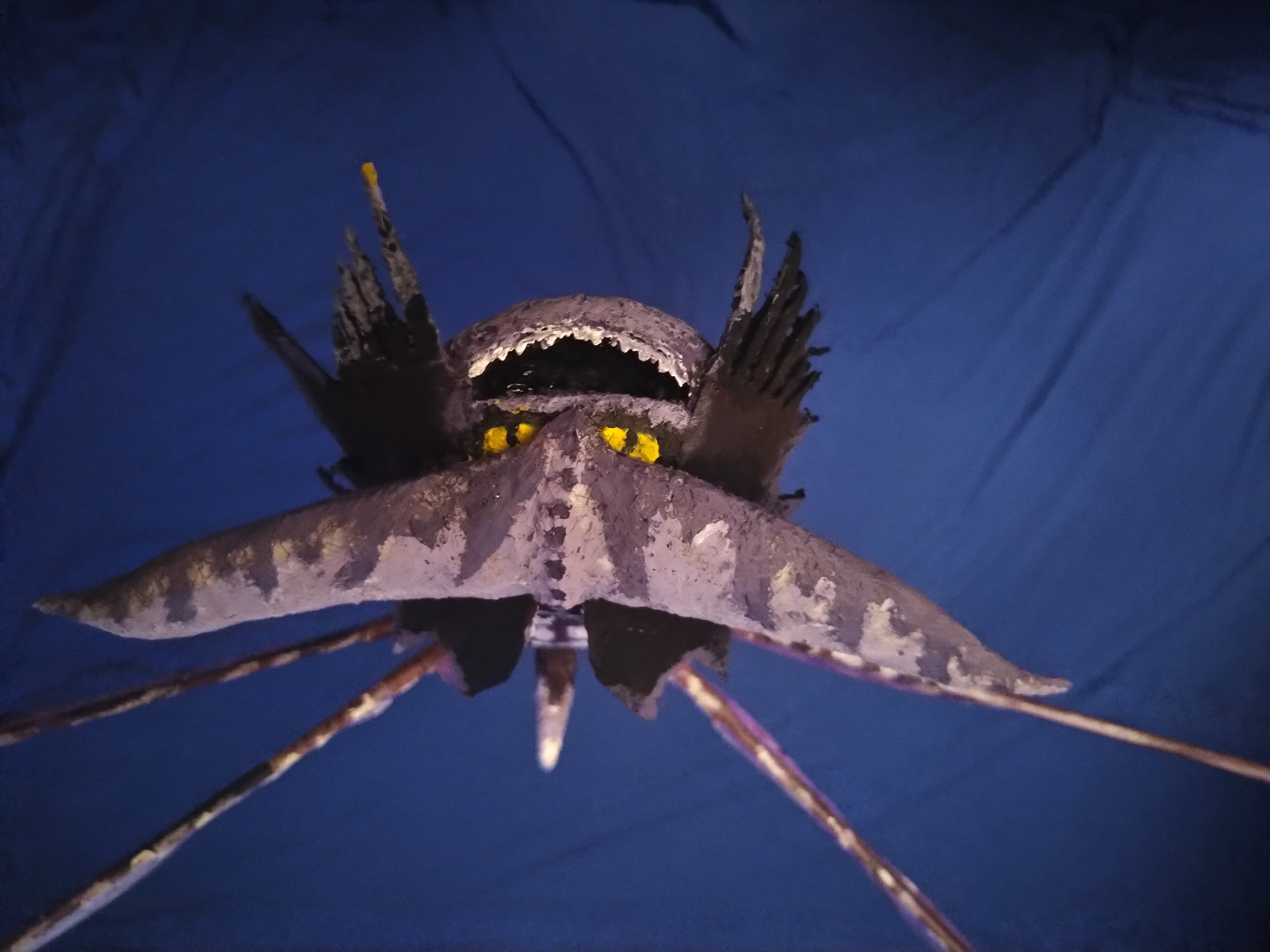

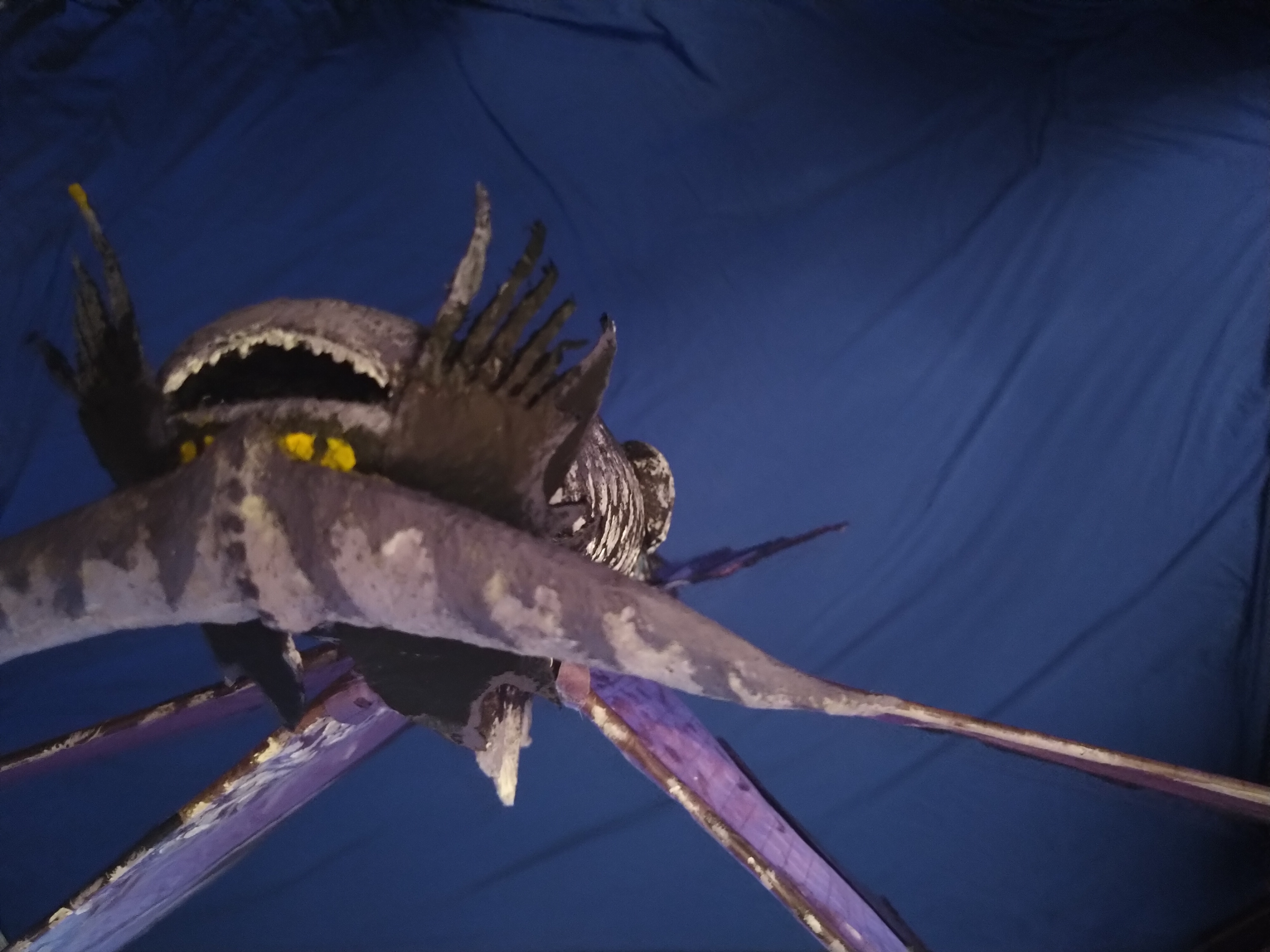

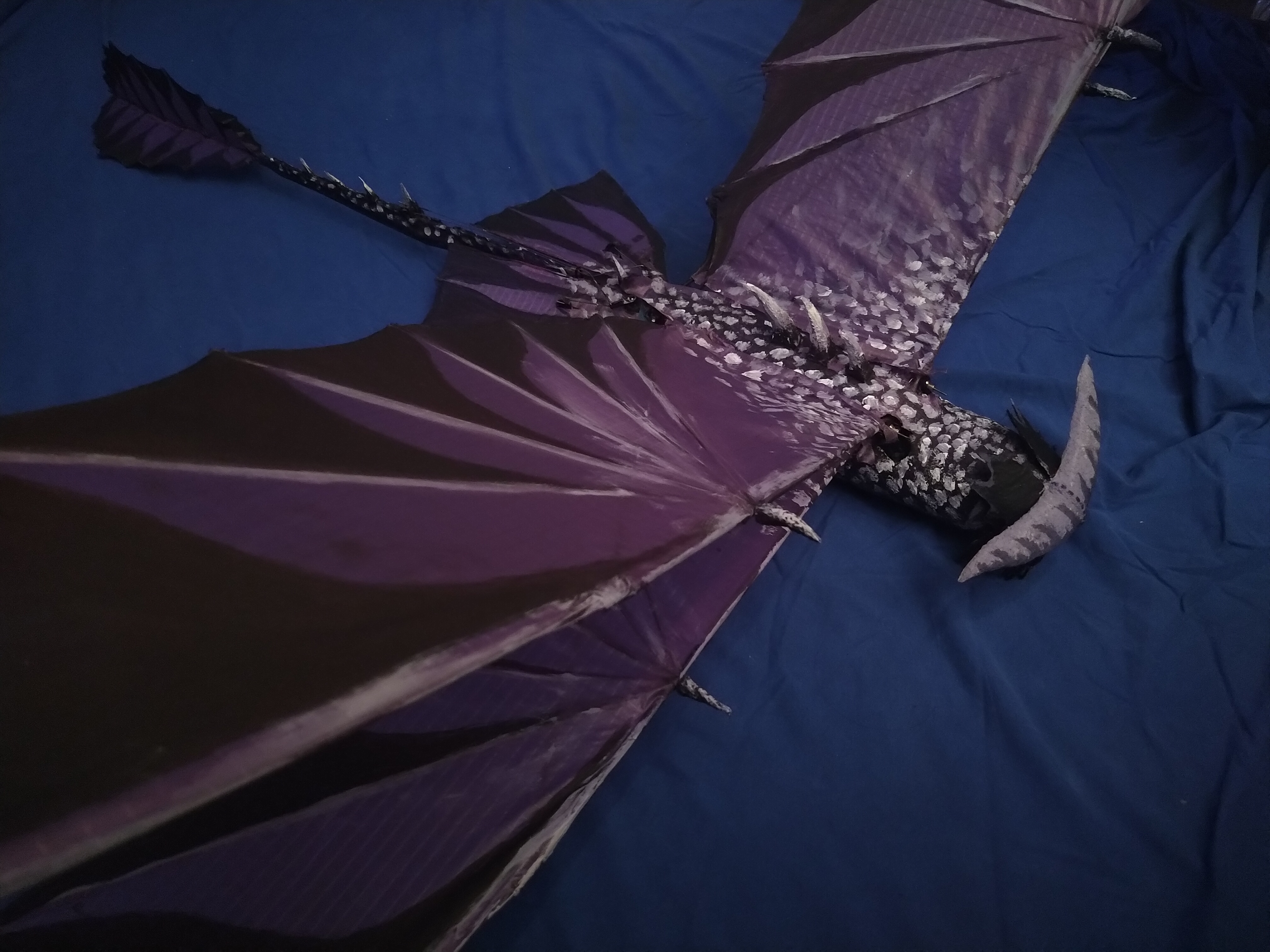

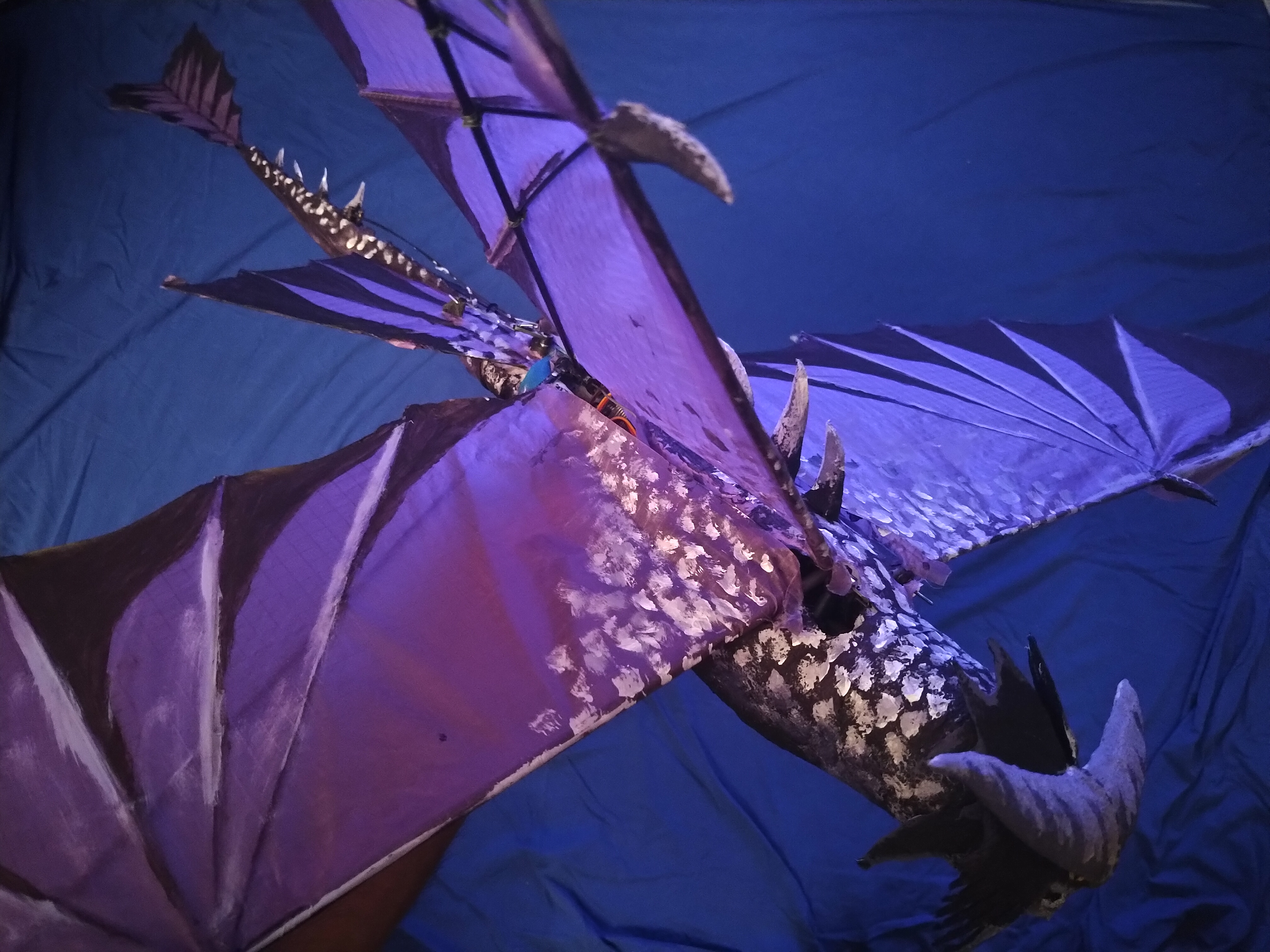

Animatronic replica of a titan stormcutter from the tv series how to train your dragon. This model has 4 wings and all are flapping independently.

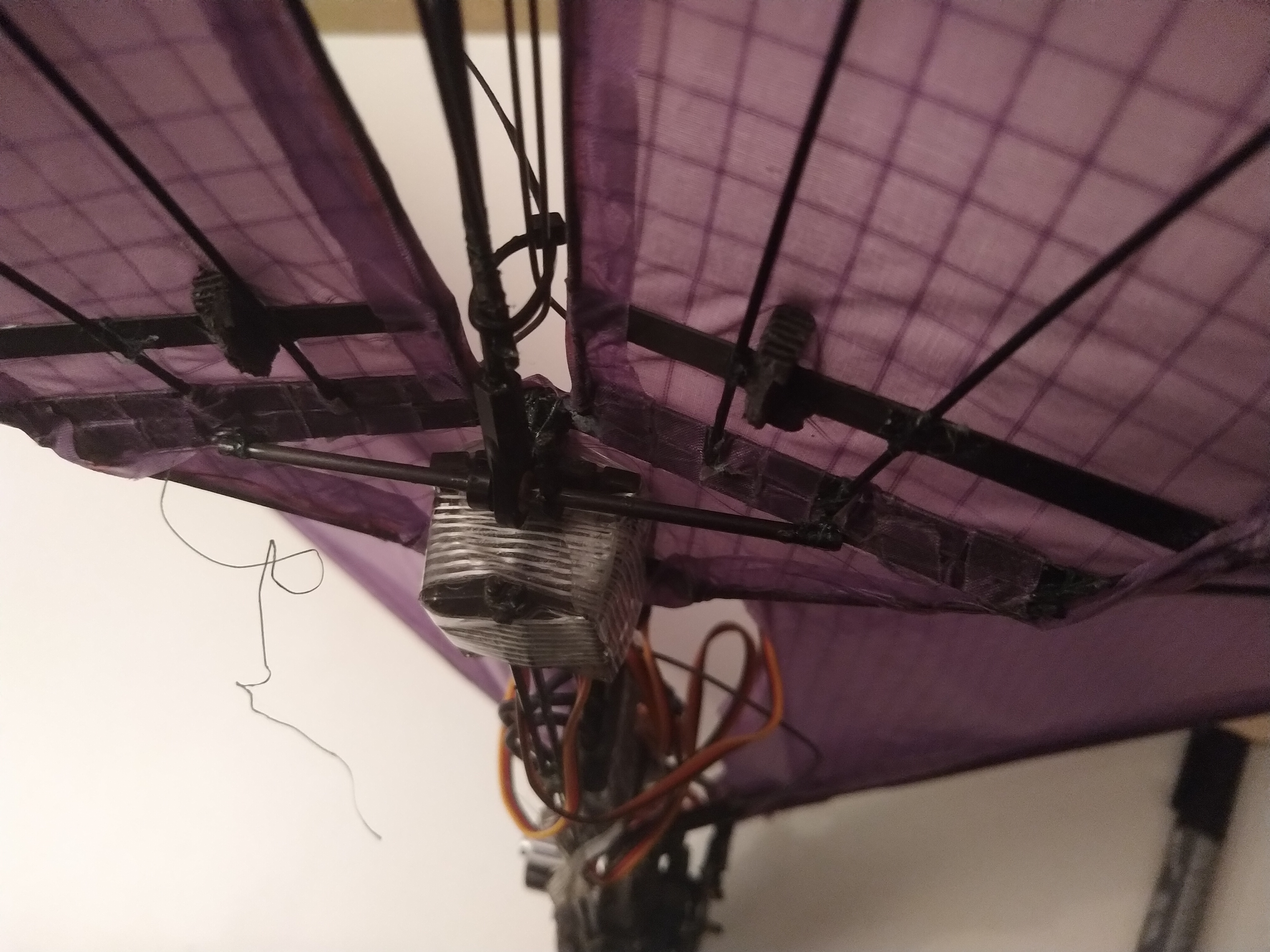

attachment point of movable tail

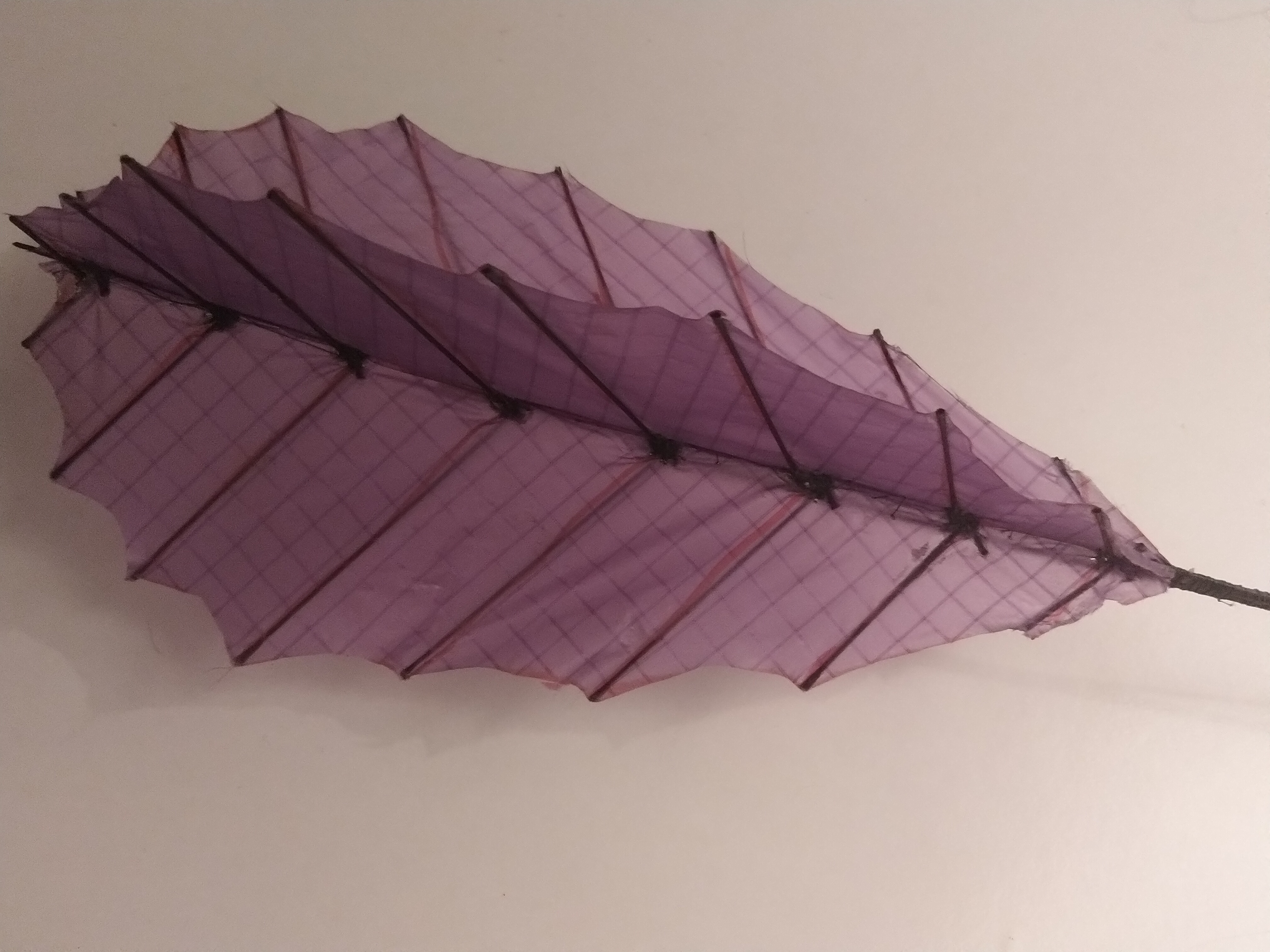

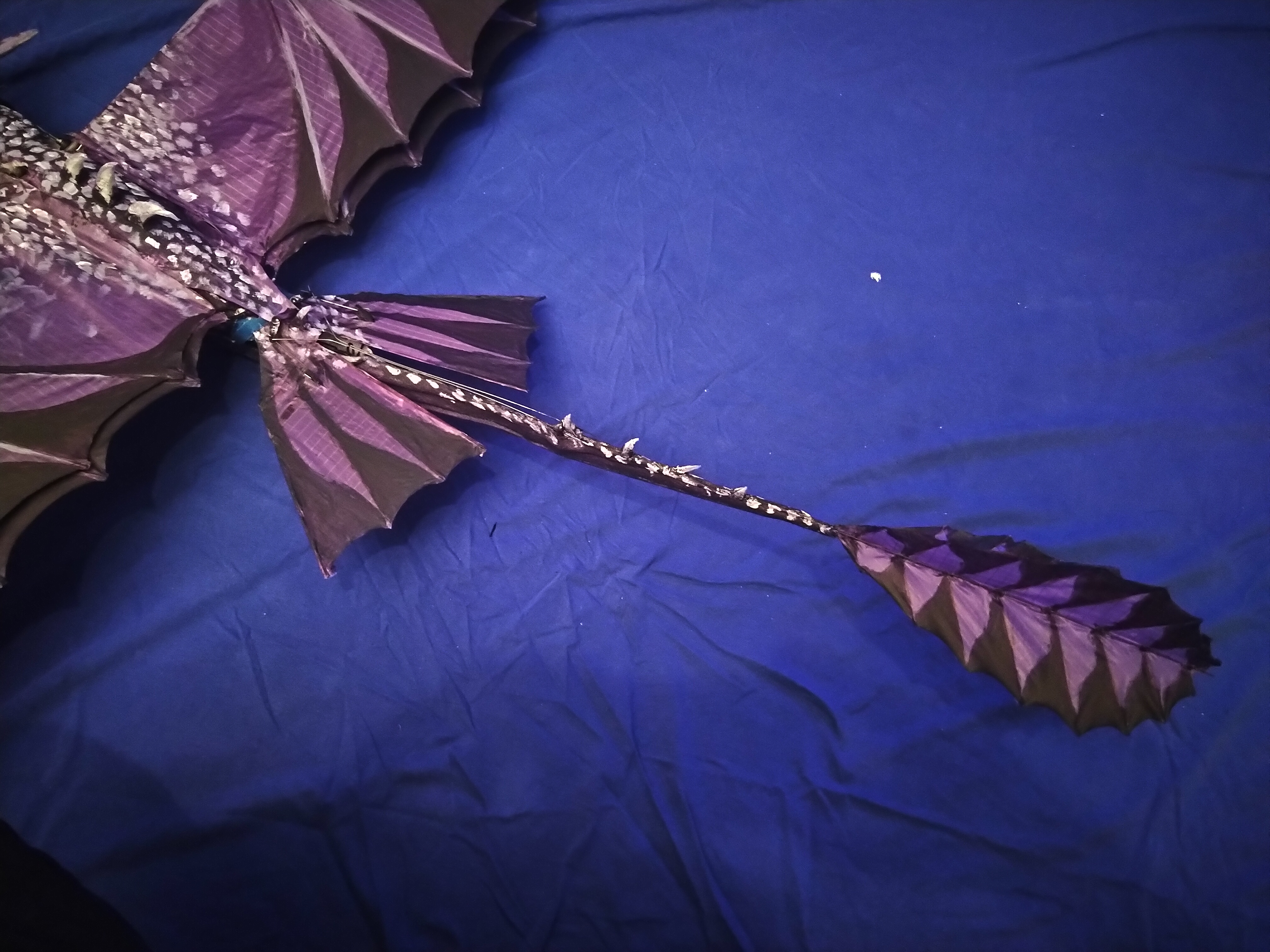

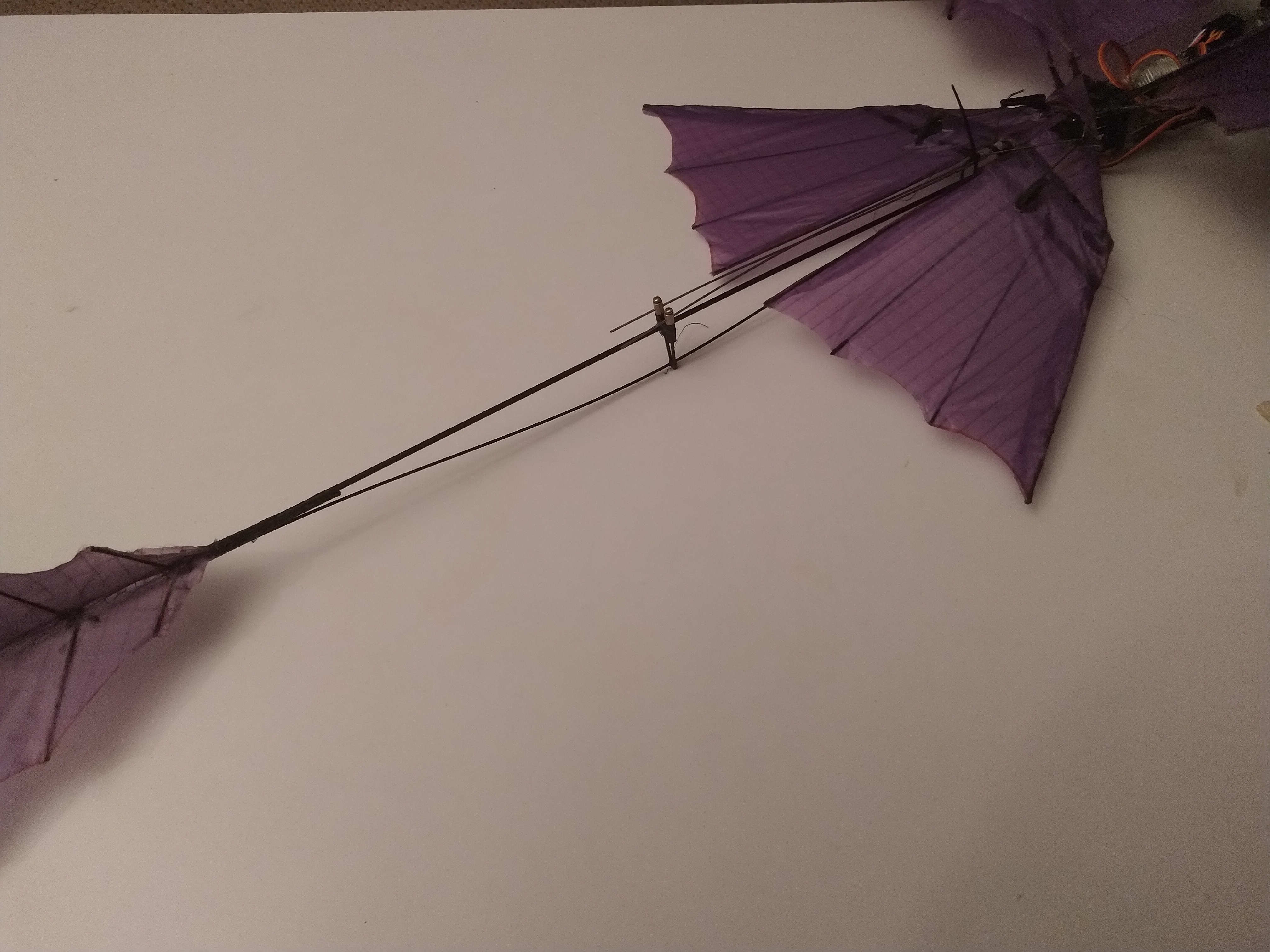

finished tail

making of tail fin

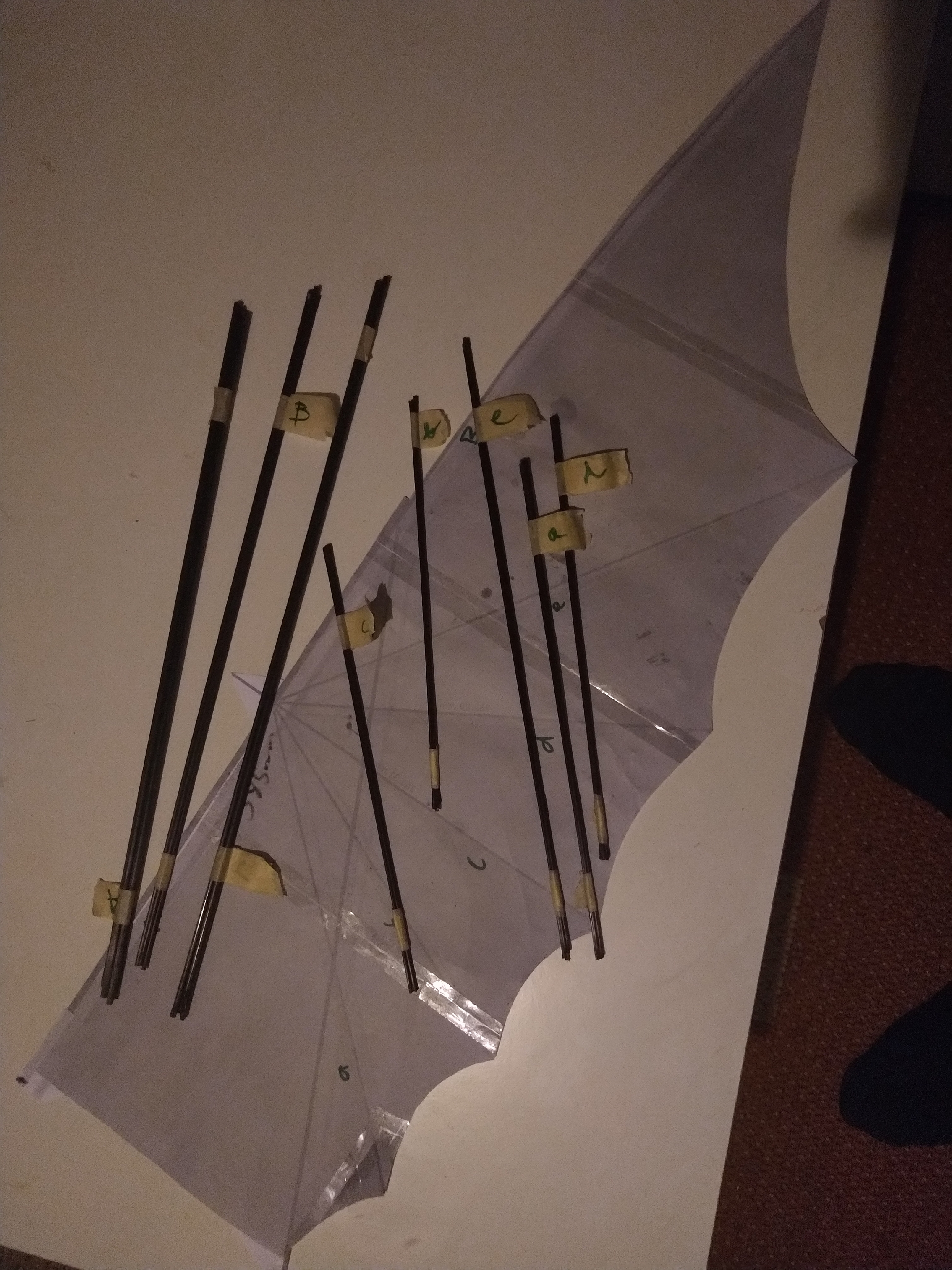

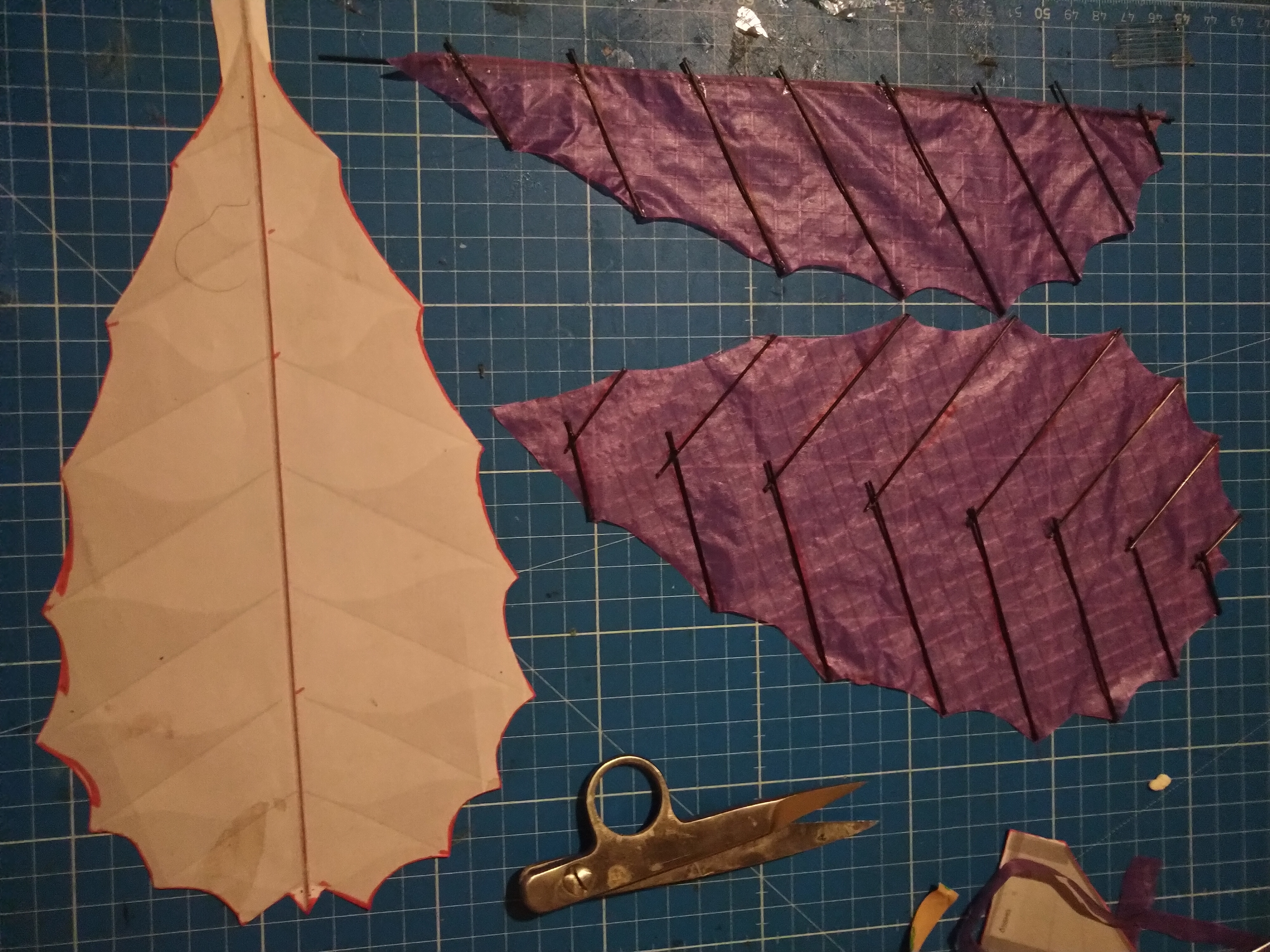

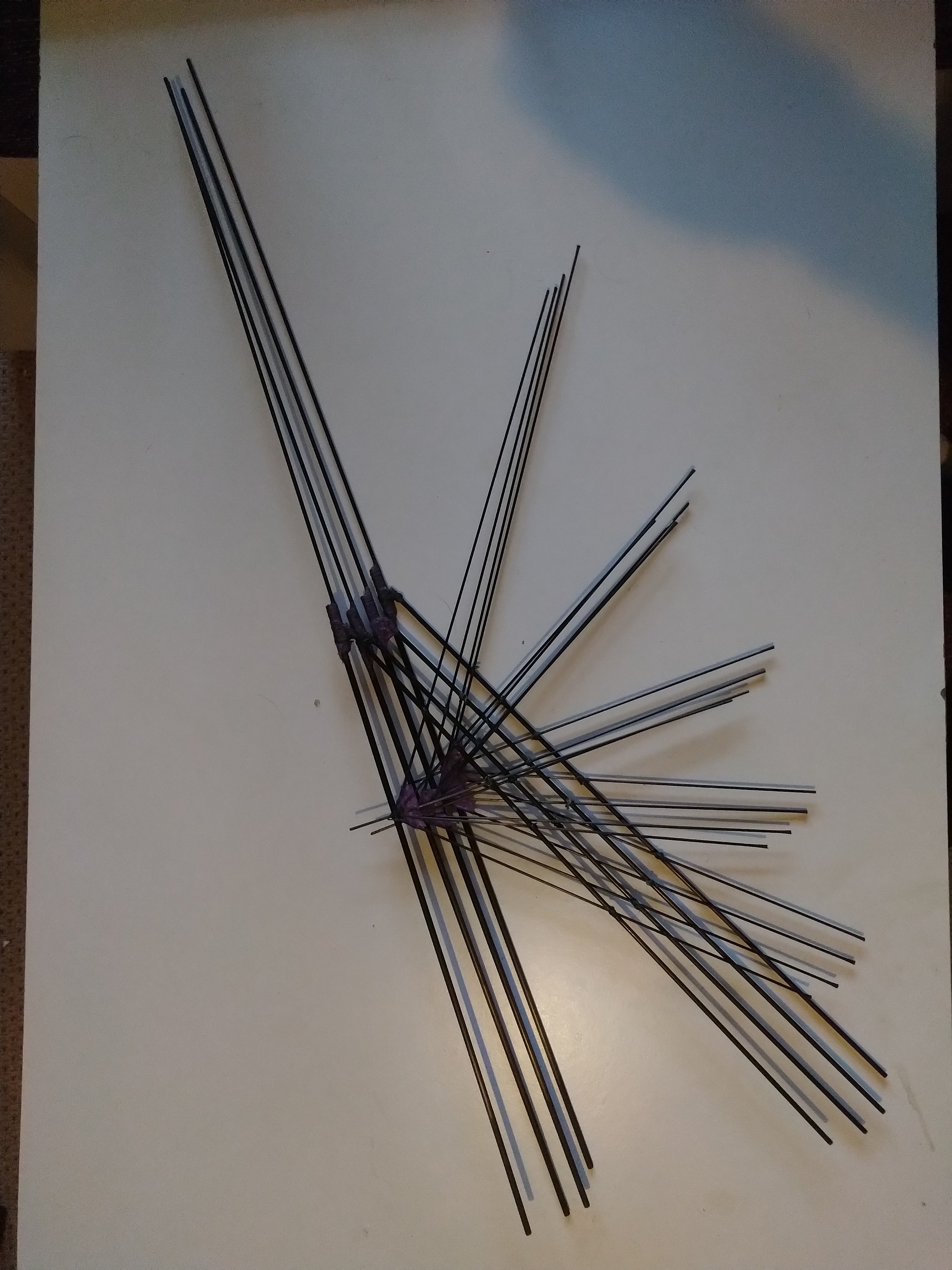

wings without membrane

wings without membrane

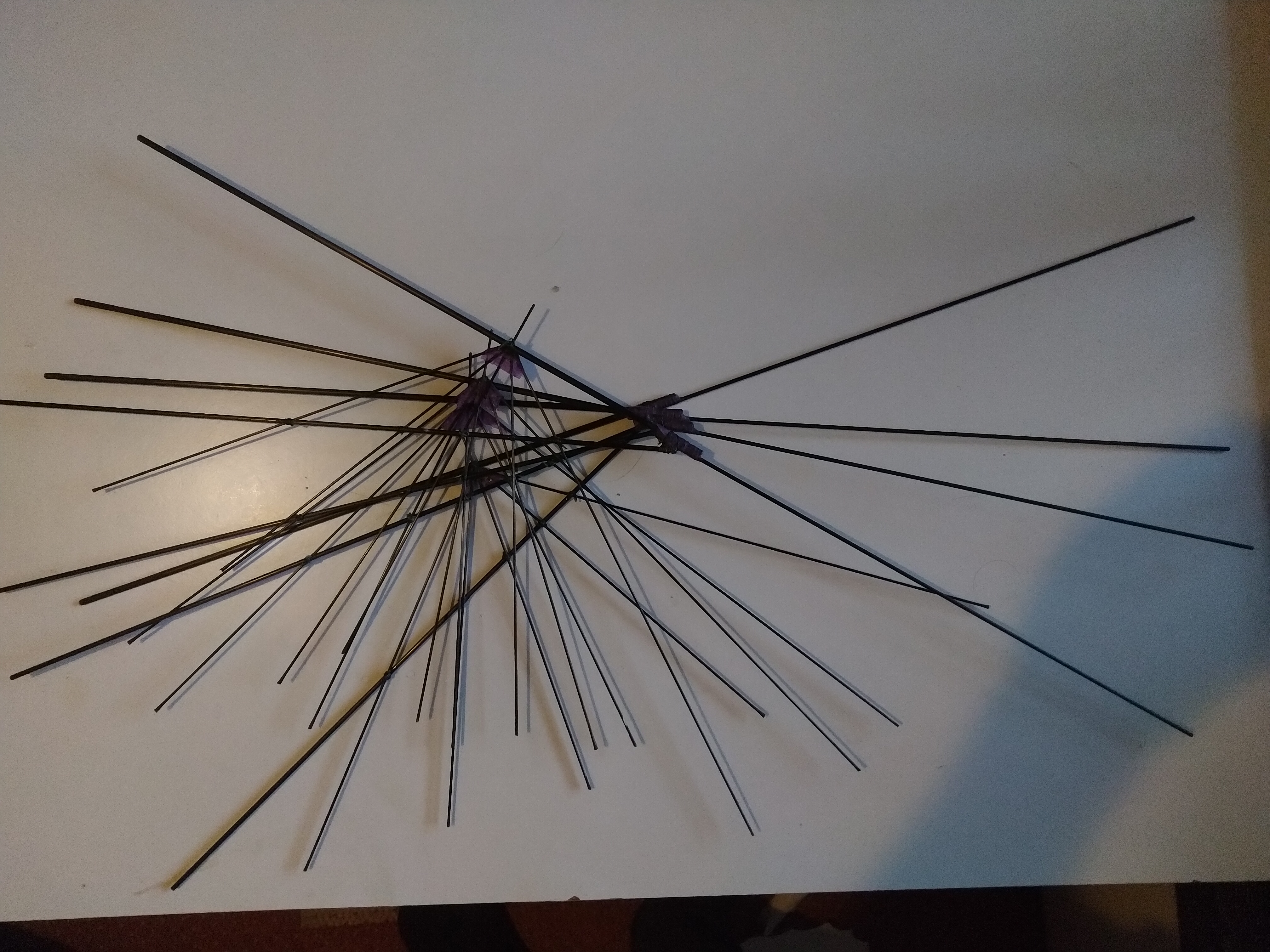

carbon rods for wings

finished gearbox and fuselage

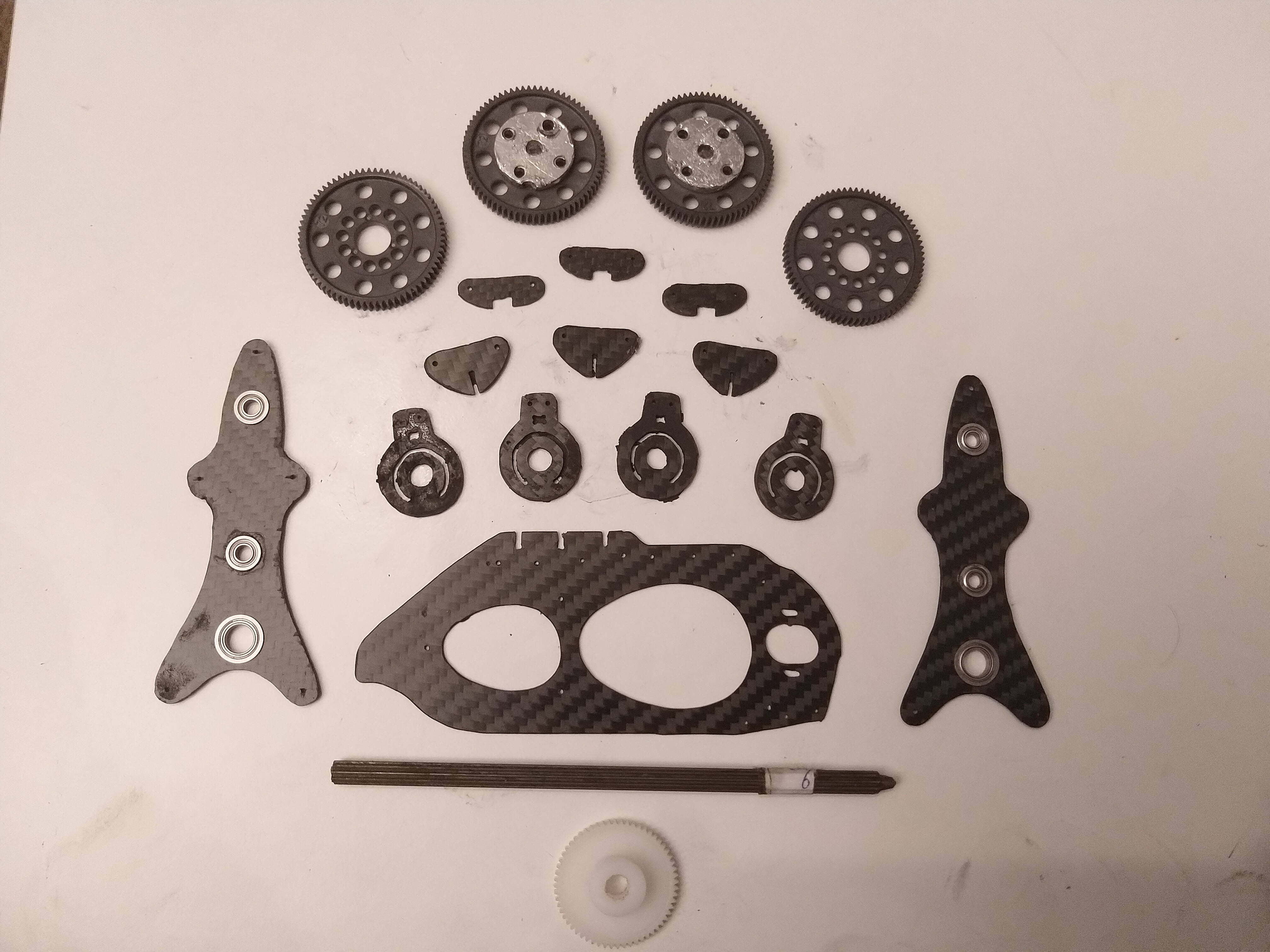

carbon parts

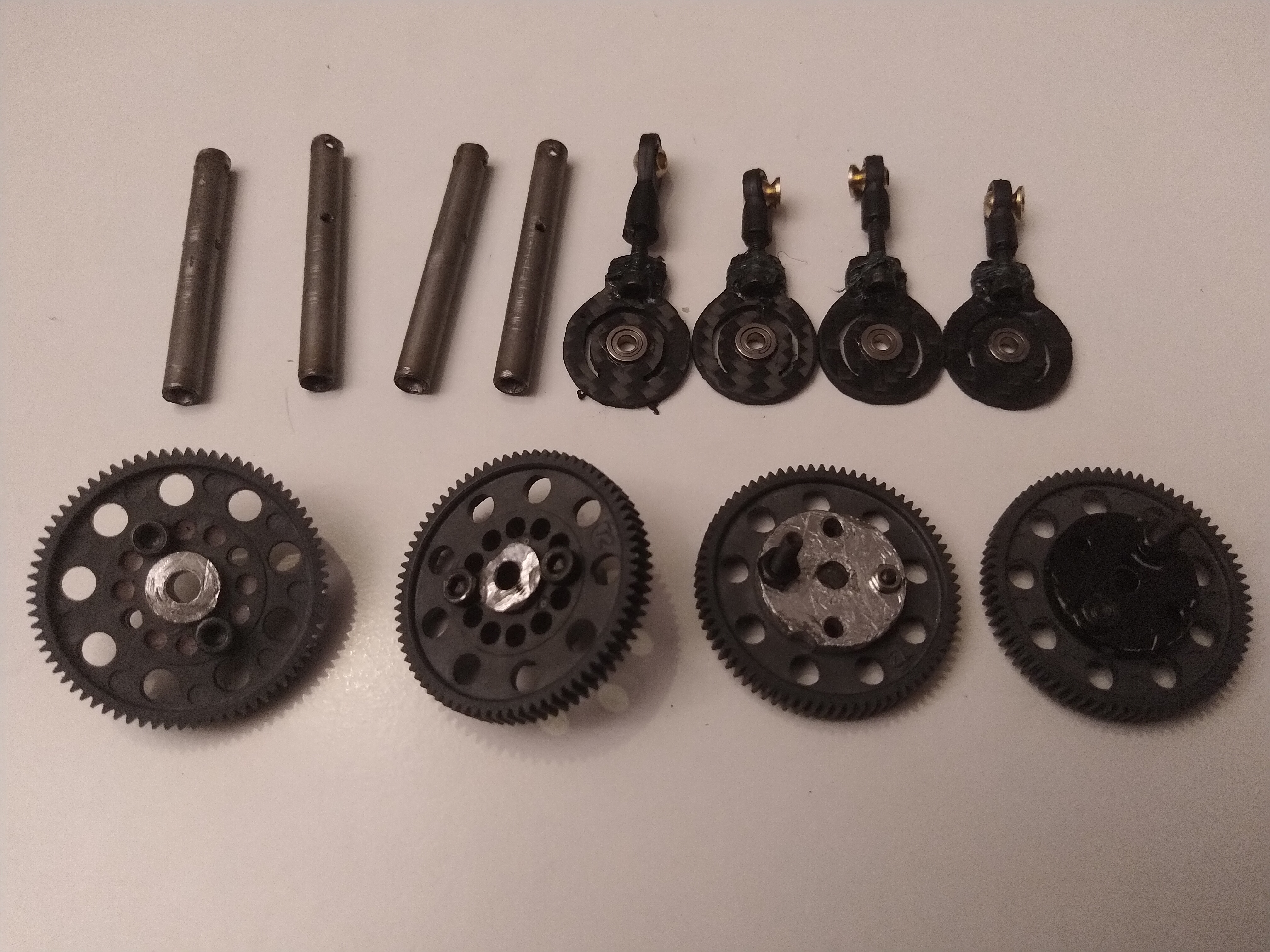

titan tubes for arms, power arms for transmission and gears with flanges

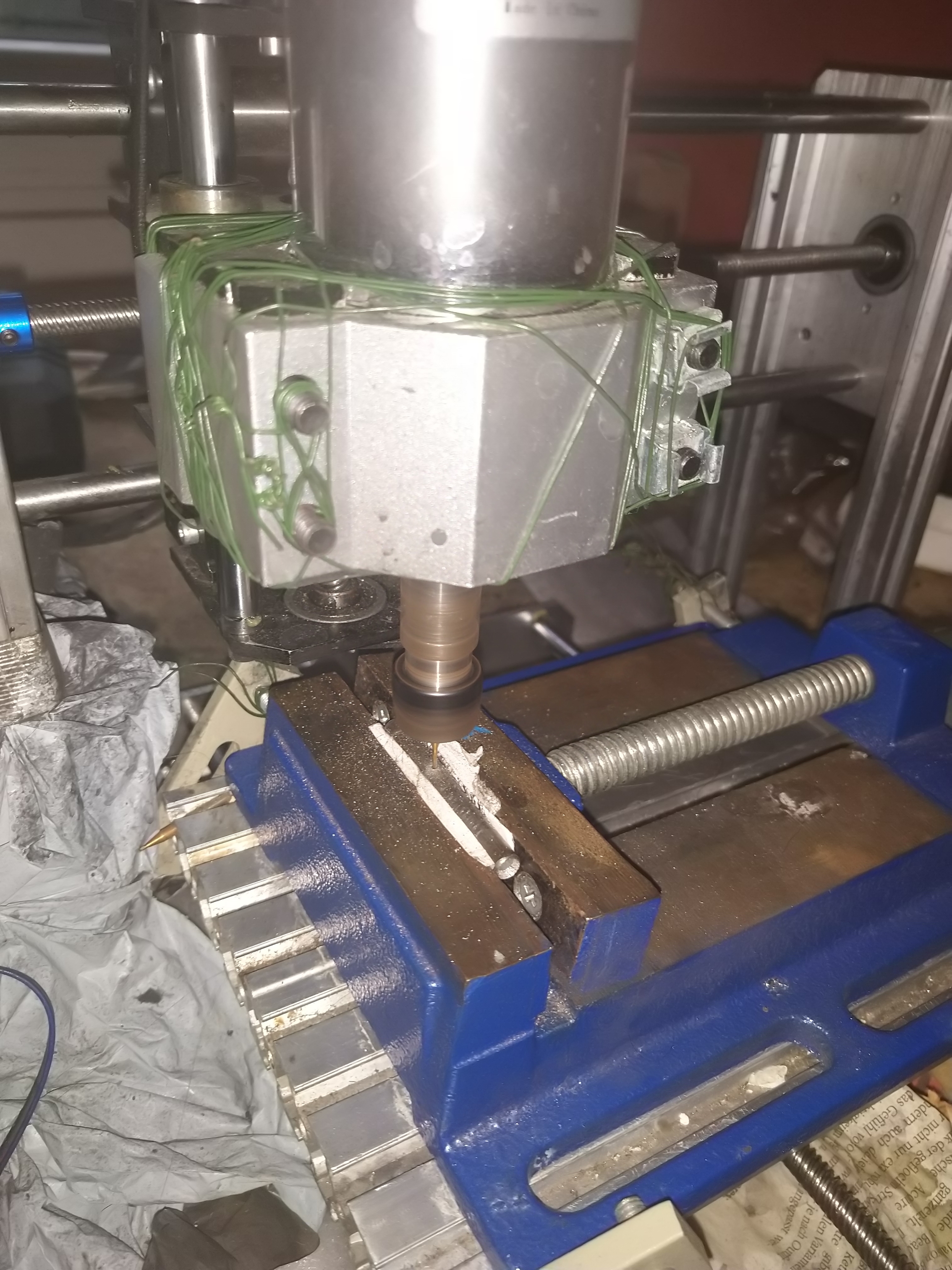

using CNC machine for drilling holes into titan tubes for arms

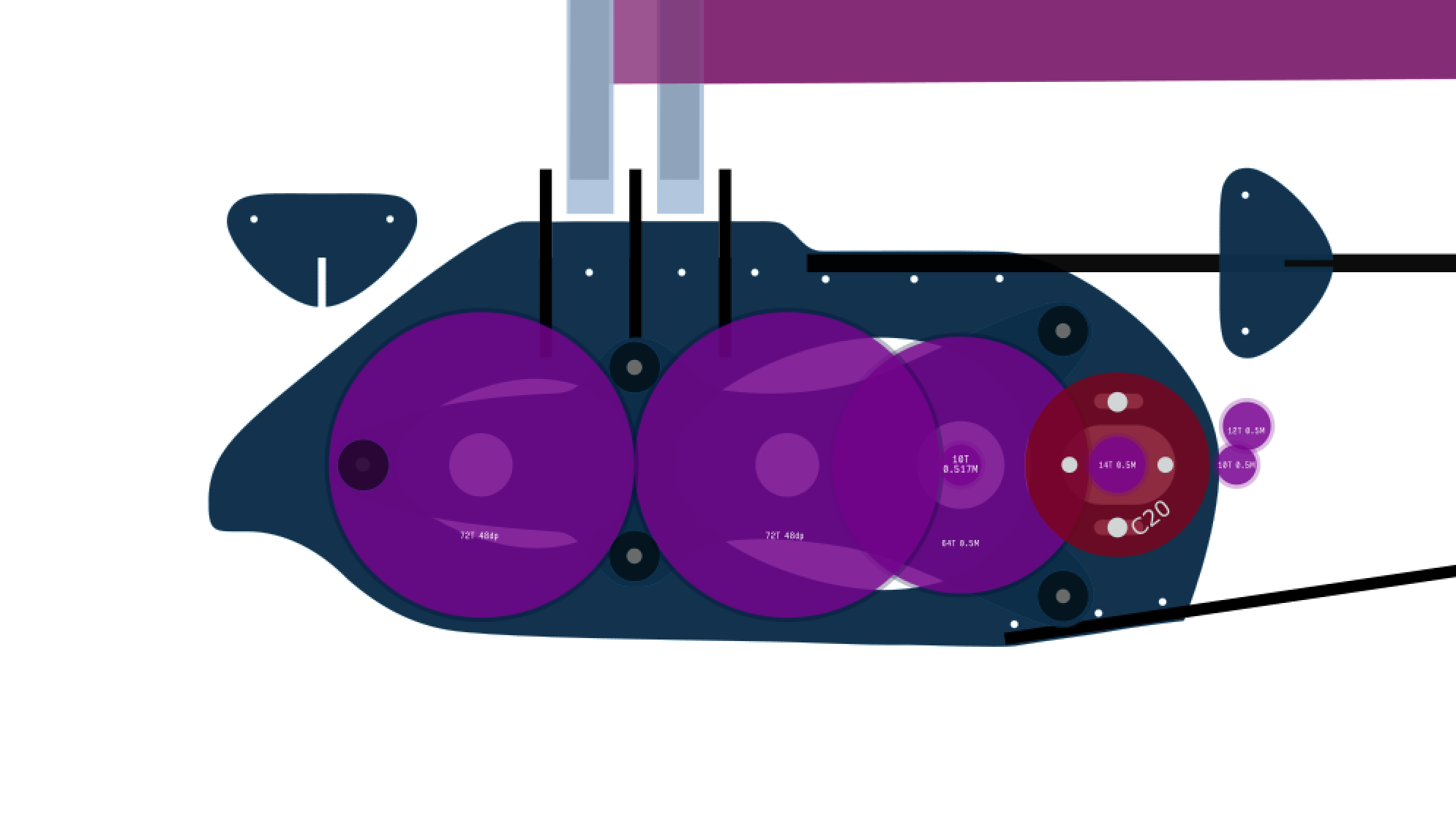

closeup of plan for drive train

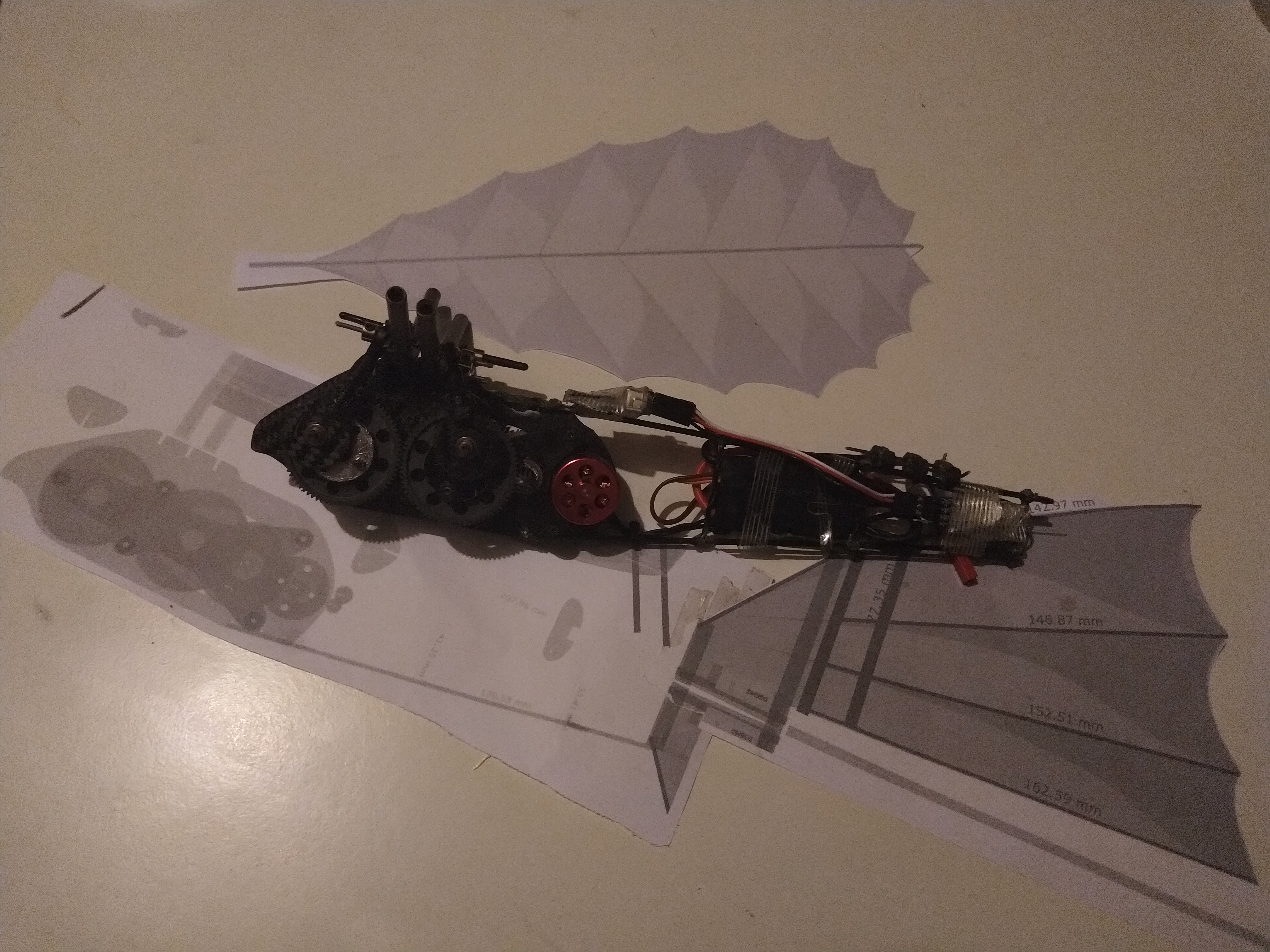

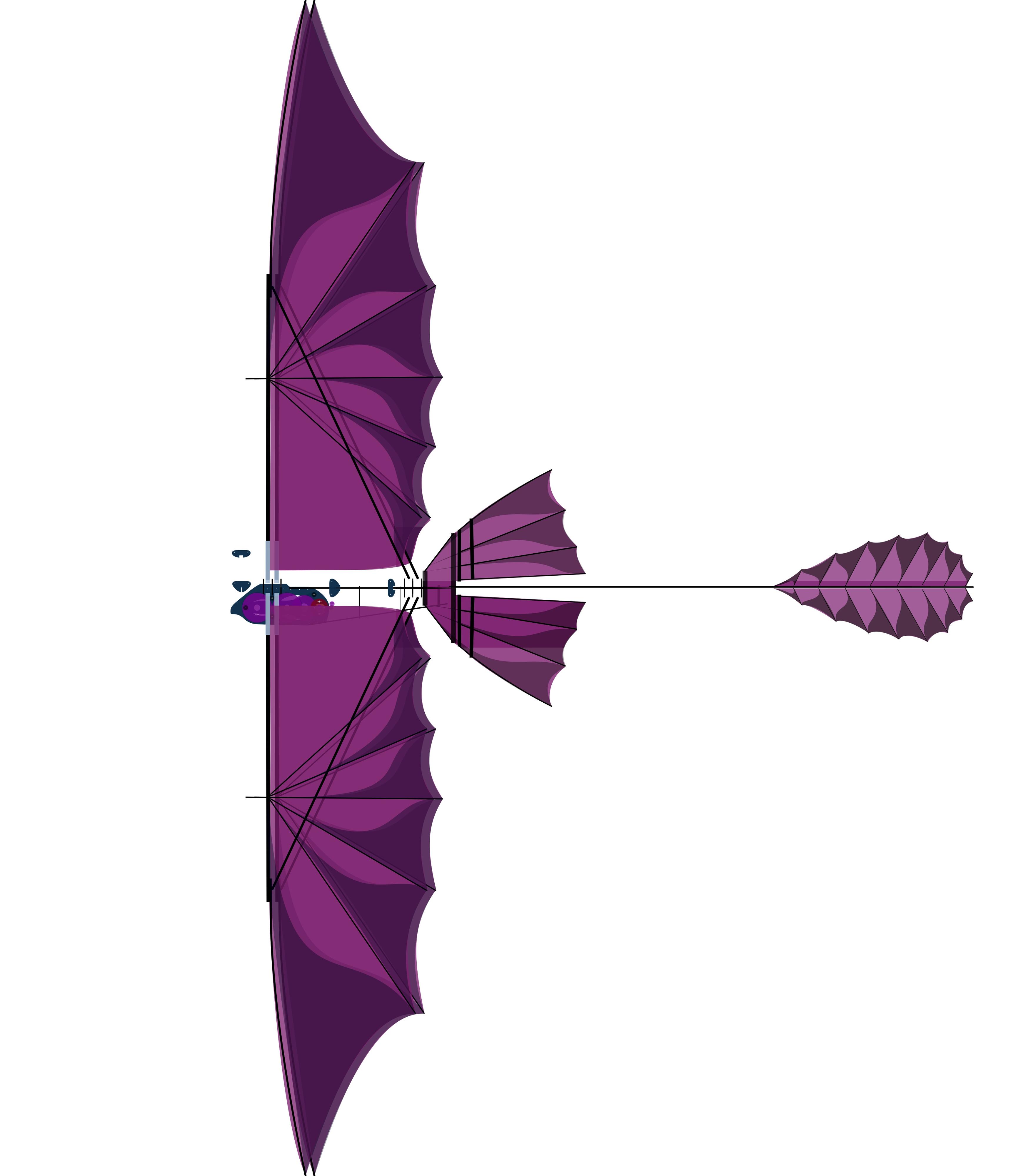

overview plan

Specification

Wingspan: 150cm
Length: 102cm
Weight: 240g
Motor: ESKY 2010 Brushless Motor outrunner 1000kv
Gears: 8t0.5Mpinion- 60t0.5MspurGear,10t0.5Mpinionwwire-72t0.5MaluminiumMainGear
Battery: 370mah 3S lipo
Control: 2x MG92B metal gear servos
Receiver: 8ch FRSKY S-BUS
Stabilizer: Byme-D

Video

Enjoy some flights:

Tagged as #ornithopter, #stormcutter, #titan, #how to train your dragon.

See also other animatronic works.
